84 11 530 Removing and installing/replacing interface for D-Network car phone

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

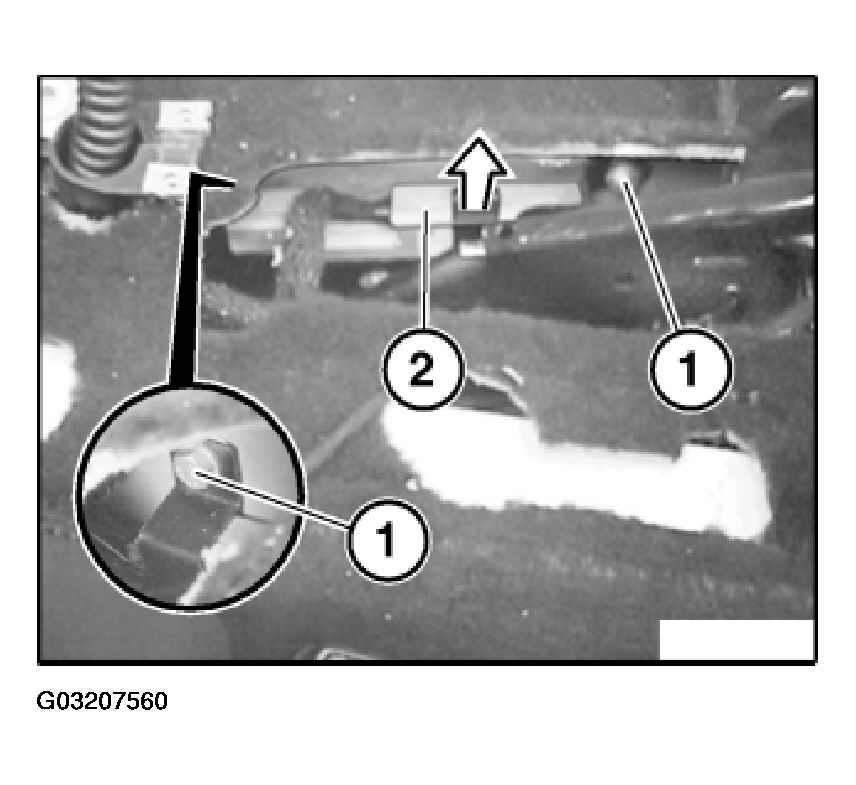

Release screws (1) and remove interface (2) in direction of arrow.

Fig 1: Removing Interface

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections.

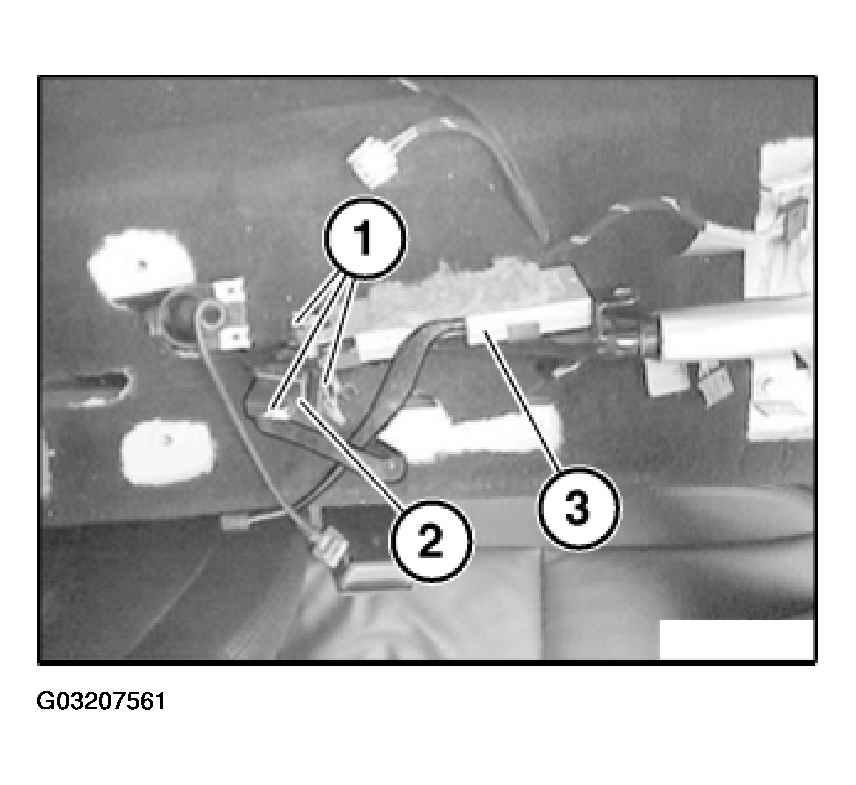

Fig 2: Removing Holder And Interface

Courtesy of BMW OF NORTH AMERICA, INC.

Turn holder and remove.

Remove interface.

Replacement:

Detach interface (1) from holder (2).

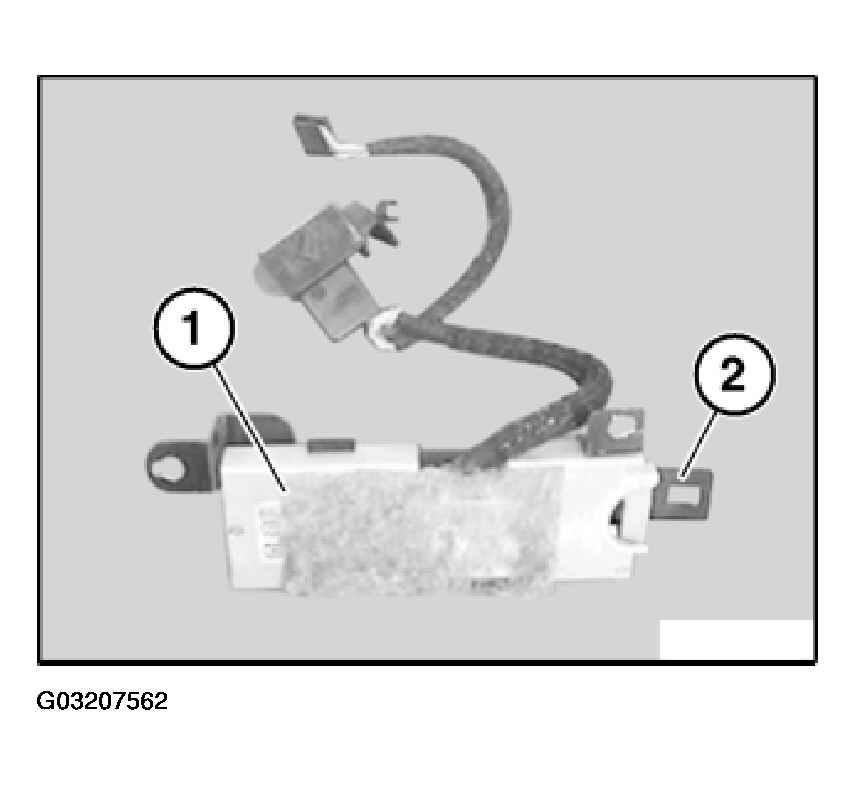

Fig 3: Detaching Interface From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
