62 13 061 Removing And Installing/Replacing External Temperature Display (M Roadster): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio, refer to 65 11 030

Unfasten heater controls and press inwards.

Loosen union nut of external temperature display through radio aperture and press display out forwards.

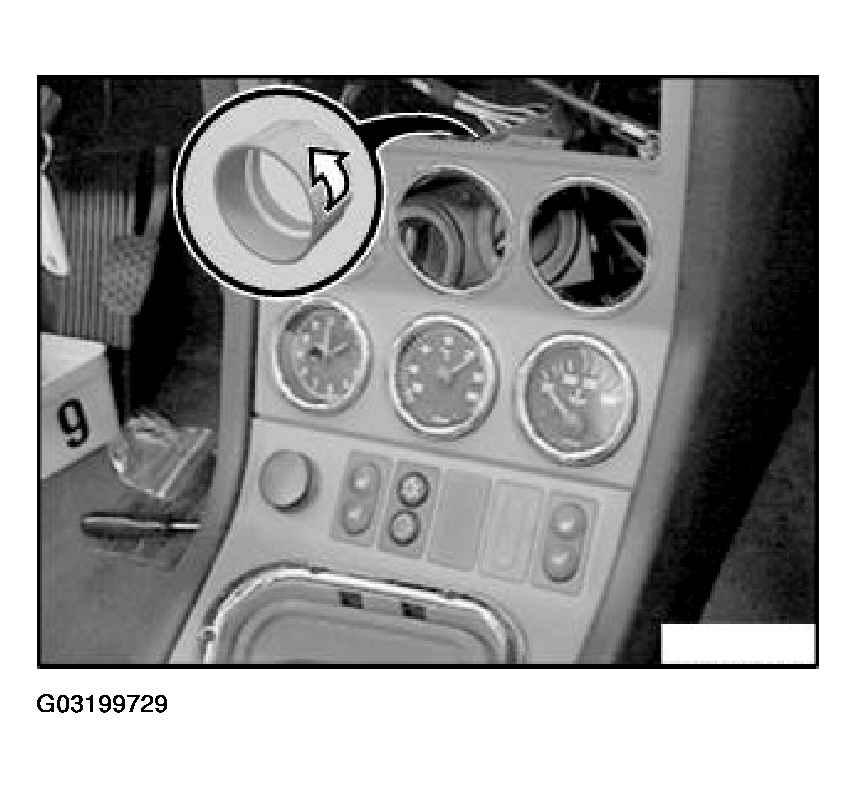

Fig 1: Removing External Temperature Display

Courtesy of BMW OF NORTH AMERICA, INC.

Mark connectors and pull off.

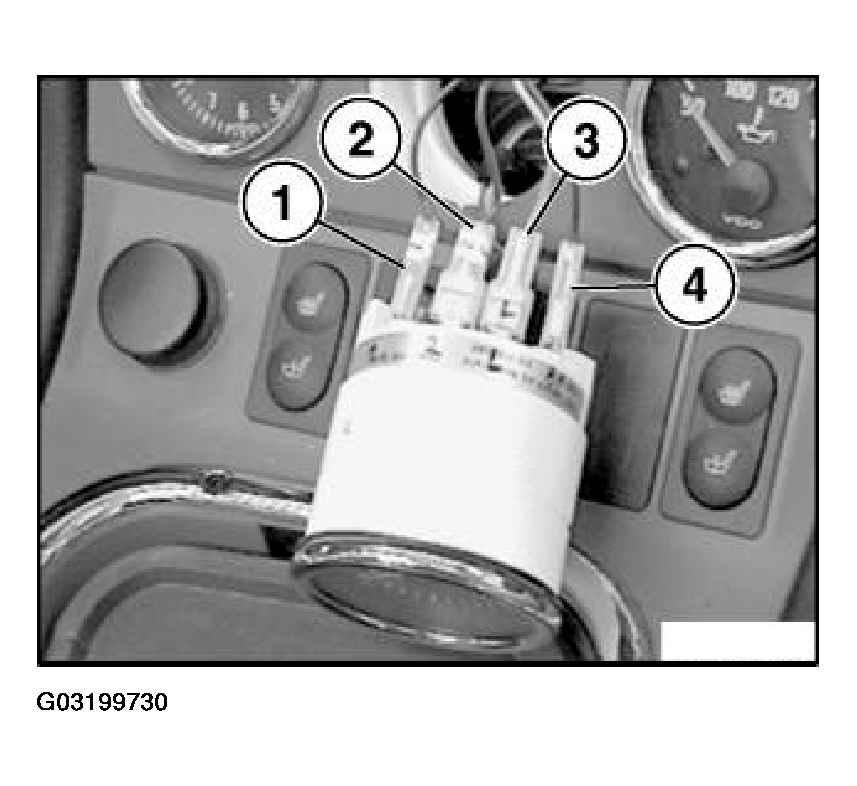

Fig 2: Marking Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
