32 41... Replacing level switch for Dynamic Drive fluid reservoir (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INTAKE DUCT for air filter housing

Release screws (1) and (2).

Tightening torque: see 21AZ in 32 41 PUMP AND OIL SUPPLY

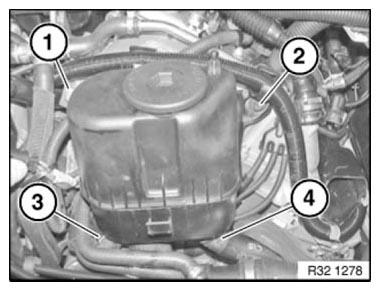

Fig 1: Identifying Dynamic Drive Fluid Reservoir Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.

Fig 2: Disconnect Plug Connection By Turning Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.
