51 00... Service position of engine compartment lid
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 51 2 160
- 51 2 240
WARNING:
Danger of injury and damage!
Engine compartment lid must be held by a second person helping.
Engine compartment lid must be held by a second person helping.
If necessary, open engine compartment lid.
NOTE:
Graphic shows F01.

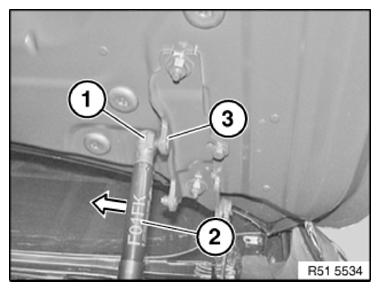

REMOVE BALL SOCKET (1).
Unclip gas pressure spring (2) in direction of arrow from ball stud (3).
NOTE:
On the F25, use special tool 51 2 160 instead of 51 2 240.

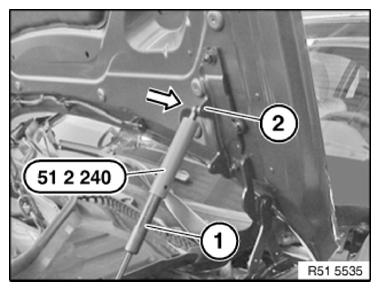

Push special tool 51 2 240 over gas pressure spring (1).
Clip ball socket of special tool 51 2 240 onto ball stud (2).
