52 17... Removing and installing outer upper rail cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Move seat backwards and upwards.

Unclip cover (1) towards front.

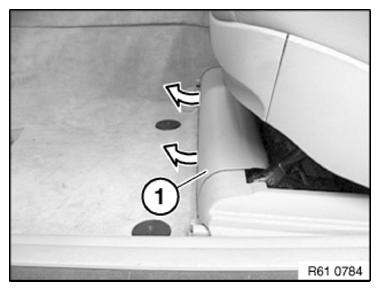

Fig 1: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Driver's seat only:

NOTE: Version with end fitting pretensioner.

Feed cover out of seat mechanism:

upwards,
slide towards rear

Feed out cover.

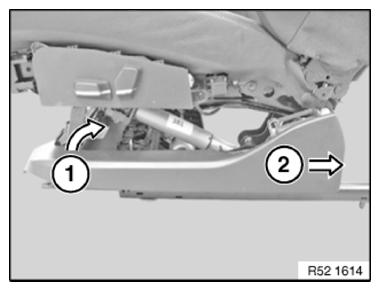

Fig 2: Sliding Seat Mechanism Cover

Courtesy of BMW OF NORTH AMERICA, INC.
