52 14... Performing function check with adapter cable (for seat repairs)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Seat function check

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 150 .

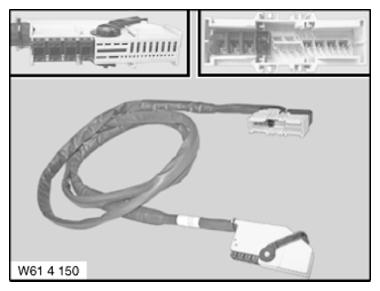

Fig 1: Identifying Adapter Cable (61 4 150)

Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 150 .

RSE (rear passenger compartment monitor) function check

NOTE: The function check of the RSE (rear passenger compartment monitor) on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 140 .

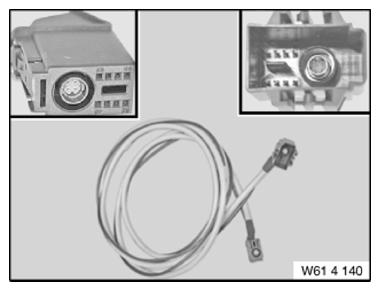

Fig 2: Identifying Adapter Cable (61 4 140)

Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 140 .
