52 14... Replacing heating element for left or right front seat
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove seat fabric.
See procedure for relevant seat type:
- NORMAL/ELECTRIC SEAT (OLDER VERSION)
- NORMAL/ELECTRIC SEAT (NEWER VERSION)
- Remove backrest cover
See procedure for relevant seat type:
- NORMAL/ELECTRIC DRIVER'S SEAT
NOTE:
Side heating elements (side sections) are bonded with a foam section and cannot be separated from each other without causing damage.
Foam section and heating elements must be replaced.
Foam section and heating elements must be replaced.
Check new foam section:
- No obvious damage or material defects
- All trim wires present in foam
- No bubbles in foam section
- No dirt/contamination on foam or residual foam
- Pay attention to foam section on left and right
Check new heating elements:
- No obvious damage or material defects
- All tear-off film pieces presents
- Note variant by examining label on cable

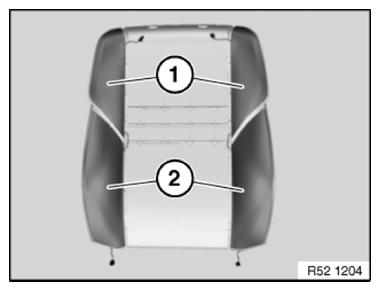

Stick on bead parts at top (1) and bottom (2):
- Detach adhesive film from left or right bead parts in succession and stick on heating elements along bead part edges.
- Press down evenly in outwards direction

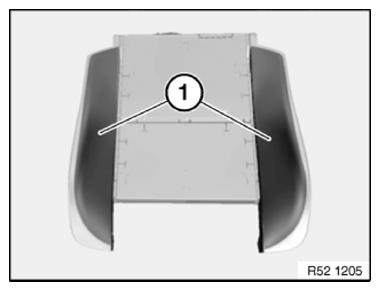

Stick on bead parts (1):
- Detach adhesive film from left or right bead part (1) and stick on heating element along bead part edges.
- Press down evenly in outwards direction
Check laying of heating elements:
- Heating elements laid without folds
- Heating elements correctly positioned
- All bonding surfaces stuck on
