52 26... Removing and installing left or right damper

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left or right REAR SEAT

IMPORTANT: Never lift off ball socket with engaged clamp.
Before installation, grease ball socket if necessary.

Installation note:

Pack grease into two opposite positions in socket.

The grease spreads after installation on the ball pin all round in the ball socket.

Dismantling/installing ball sockets:

Push on clamp in direction of groove with screwdriver
Lift off ball socket from ball pin
Slide clamp back
Fit ball socket on ball stud and snap into place with force

Fig 1: Installing Damper Ball Socket
Courtesy of BMW OF NORTH AMERICA, INC.

Removing left or right damper:

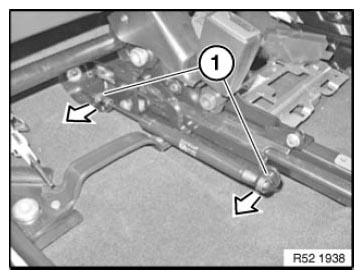

Push open retaining clips (1)
Detach ball sockets at sides.

Fig 2: Removing Damper Retaining Clips
Courtesy of BMW OF NORTH AMERICA, INC.
