13 62 620 Remove and install or replace the nitrogen oxide sensor before SCR catalytic converter (N57 D30 O/T 1 with SCR)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove rear UNDERBODY PROTECTION .

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 12AZ .

Remove control unit (3) for nitrogen oxide sensor.

Fig 1: Identifying Nitrogen Oxide Sensor, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable from clips (1).

Release cable strap (2).

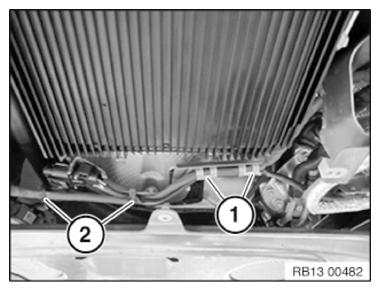

Fig 2: Identifying Cable Strap Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Detach nitrogen oxide sensor (1) and remove from exhaust system.

Tightening torque 13 62 11AZ .

Maneuver out nitrogen oxide sensor and control unit for nitrogen oxide sensor and remove.

Fig 3: Identifying Nitrogen Oxide Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
