13 62 651 Removing/Replacing oxygen sensor (N57 D30 O 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 020

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove INTAKE SILENCER HOUSING .

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Disconnect connector (1) and release from bracket.

Release oxygen sensor cable from clamp (2).

Cut open cable strap (3). Replace cable strap (3).

Remove oxygen sensor (4) with special tool 11 7 020 .

Tightening torque 13 62 3AZ .

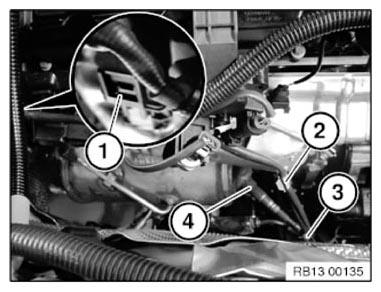

Fig 1: Identifying Oxygen Sensor, Cable Strap And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Threads of new oxygen sensors are already coated with NEVER-SEEZ compound.

If an oxygen sensor is reused, only apply a thin and uniform coat of NEVER-SEEZ compound to thread.

Oxygen sensor section projecting into exhaust branch must not be cleaned or come into contact with lubricant.

Pay attention to cable routing of oxygen sensors.

11 7 020 Use special tool to tighten down oxygen sensor.

Tightening torque 13 62 3AZ .

Cover oxygen sensors when applying underbody protection.

Installation note:

Check stored error/fault messages.

Delete fault memory.
