66 51 030 Remove and install/replace KAFAS camera

WARNING: This page is about a different car, the 2014 BMW 428i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

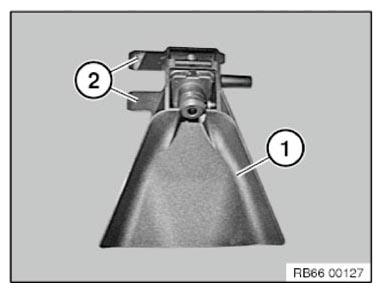

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

NOTE: Latch mechanisms of two-part mirror base cover (1) must not be damaged.

Fig 1: Disconnecting Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

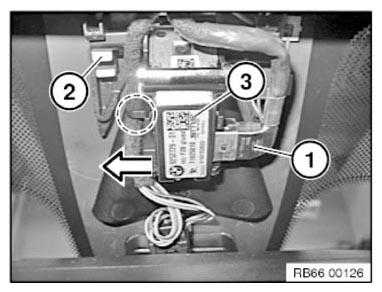

Disconnect plug connection (1).

Unclip cable in marked area.

Unlock retaining claps (2) and remove camera (3) in direction of arrow.

Fig 2: Removing Camera With Retaining Claps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (2) on camera (1) must be correctly inserted in counter supports on windscreen!

Make sure camera (1) is securely seated.

When replacing windscreen:

Carry out calibration via BMW diagnosis system:

Service functions:

Fig 3: Identifying Guides On Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Driver assistance
Camera-based driver support systems
Calibration of camera-based driver support systems

NOTE: Heating of camera for lane departure warning is integrated in windscreen.
If heating is defective, the windscreen must be replaced!
