Additional exhaust-gas recirculation cooler: Notes
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
So that the exhaust gas can be further cooled for exhaust-gas recirculation, several variants have an additional exhaust-gas recirculation cooler installed.
Series use: To 07/2013 in F10 with N57D30O1 US version

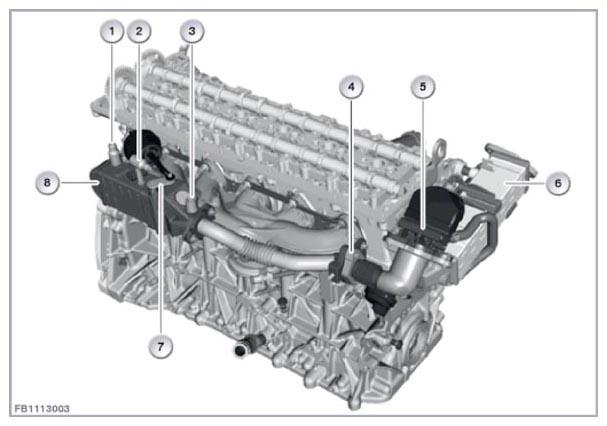

| 1 | Connection for coolant |
| 2 | Connection for coolant |
| 3 | Connection for exhaust temperature sensor downstream of auxiliary exhaust-gas recirculation cooler |
| 4 | Connection on EGR valve |
| 5 | EGR valve |
| 6 | EGR cooler |
| 7 | Lever for supplementary EGR cooler bypass flap |
| 8 | Additional exhaust-gas recirculation cooler |

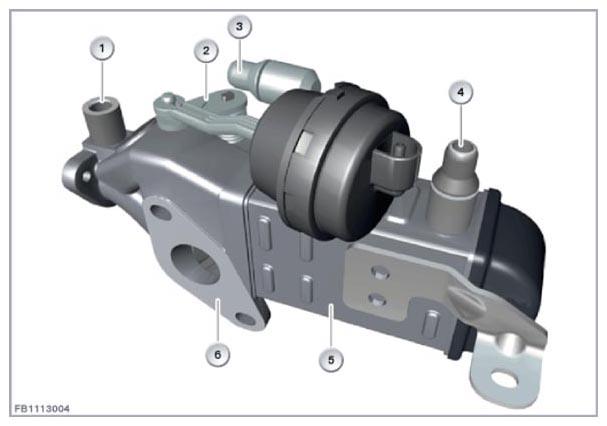

| 1 | Connection for exhaust temperature sensor downstream of supplementary EGR cooler |
| 2 | Lever for supplementary EGR cooler bypass flap |
| 3 | Connection for coolant |
| 4 | Connection for coolant |
| 5 | Additional exhaust-gas recirculation cooler |
| 6 | Supplementary EGR cooler connection on exhaust manifold |
Function
The additional exhaust-gas recirculation cooler is arranged above the exhaust manifold and directly screwed to the exhaust manifold. The additional exhaust-gas recirculation cooler is connected to the cooling circuit.
The exhaust gas travels directly from the exhaust manifold to the additional exhaust-gas recirculation cooler. The outlet of the supplementary EGR cooler is connected by a pipe to the inlet of the EGR valve. The exhaust passes as normal into the normal EGR cooler via the EGR valve.
