Intake manifold
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The Digital Motor Electronics (DME) is connected to the differentiated air intake system. which means that intake air is also used to cool the Digital Motor Electronics (DME).

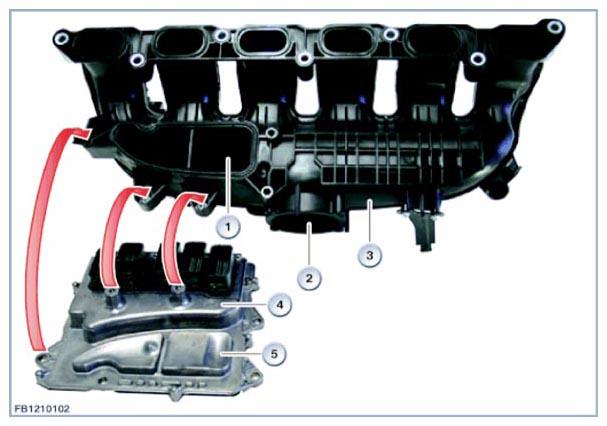

| Item | Explanation |
|---|---|
| 1 | Connecting flange for cooling of Digital Motor Electronics (DME) |
| 2 | Connecting flange, throttle valve |
| 3 | Intake manifold |
| 4 | Digital engine electronics |
| 5 | Cooling fins of Digital Motor Electronics (DME) |
