Catalytic converter
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The engine S63 TOP has a double-walled catalytic converter for each bank. The catalytic converts no longer have decoupling elements.
The known Bosch oxygen sensors are used. The control sensor is located in front of the catalytic converter, as close as possible to the turbine output. Your position was selected so that all cylinders can be recorded separately. The monitoring sensor is positioned between the first and second ceramic monoliths.

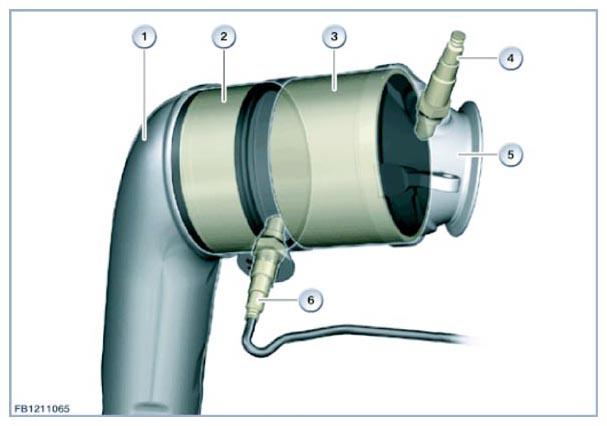

The graphic below shows the catalytic converter pipe with the integrated components.
| Index | Explanation |
|---|---|
| 1 | Exhaust system connection |
| 2 | Ceramic monolith 2 |
| 3 | Ceramic monolith |
| 4 | Control sensor |
| 5 | Turbine connection |
| 6 | Monitor sensor |
