Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

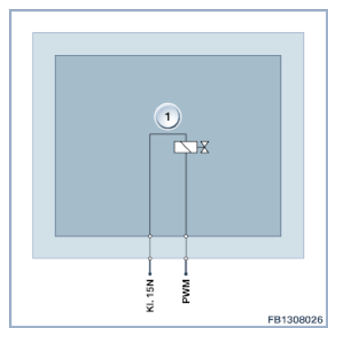

The tank vent valve is a solenoid valve. In de-energized state, the tank vent valve closes off the fuel vapor line between the carbon canister and the intake pipe.
Courtesy of BMW OF NORTH AMERICA, INC.
| Index |
Explanation |
| 1 |
Tank vent valve |
PIN REFERENCE
| Pin |
Explanation |
| Kl. 15N |
Terminal 15, voltage supply |
| PWM |
Pulse-width modulated signal |
