61 31 115 Replacing Rocker Switch For Side Window Operation (Front)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 322
00 9 341

Lever clip (1) with special tool 00 9 322 out of armrest on front door (2).

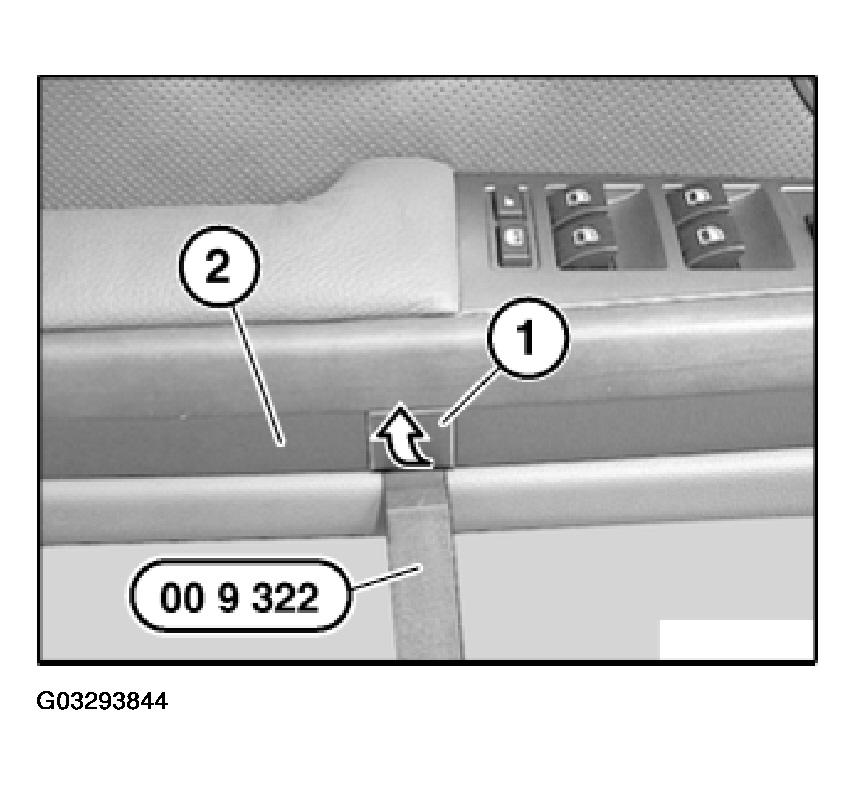

Fig 1: Clip, Front Door Armrest, Special Tool (00 9 322) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Using a suitable tool (1), press power window switch (3) through opening (2) out of armrest on front door (4).

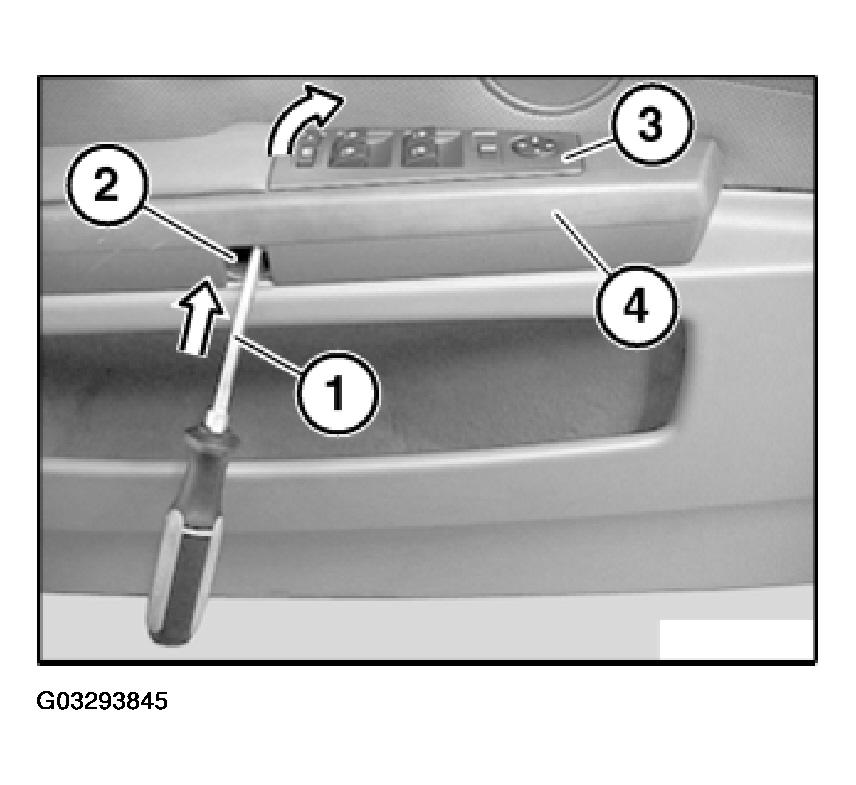

Fig 2: Suitable Tool, Power Window Switch, Opening, Front Door Armrest And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent damage to armrest pad: insert power window switch (1) guided by special tool 00 9 341 into armrest on front door (2).

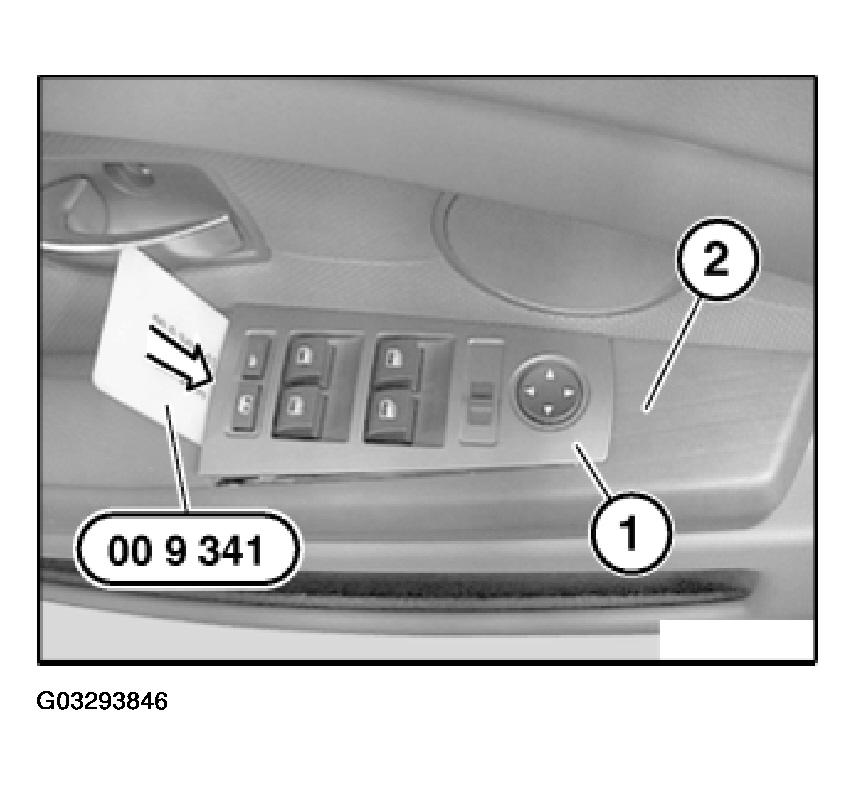

Fig 3: Power Window Switch, Front Door Armrest, Special Tool (00 9 341) And Installation Direction

Courtesy of BMW OF NORTH AMERICA, INC.
