61 31 152 Removing And Installing (Replacing) Control Unit In Center Armrest At Front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 341

Necessary Preliminary Tasks:

Remove center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT) .

CAUTION: To avoid damage, place center armrest on a suitable surface.

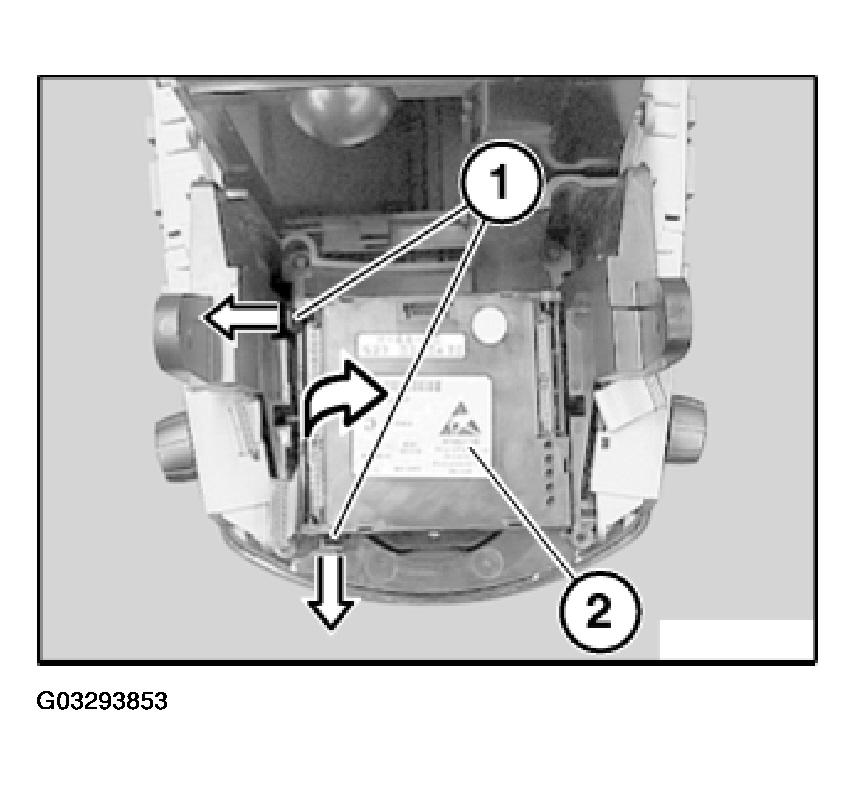

Disconnect plug connections (1) from control unit in center armrest (2).

Fig 1: Plug Connections And Center Armrest Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

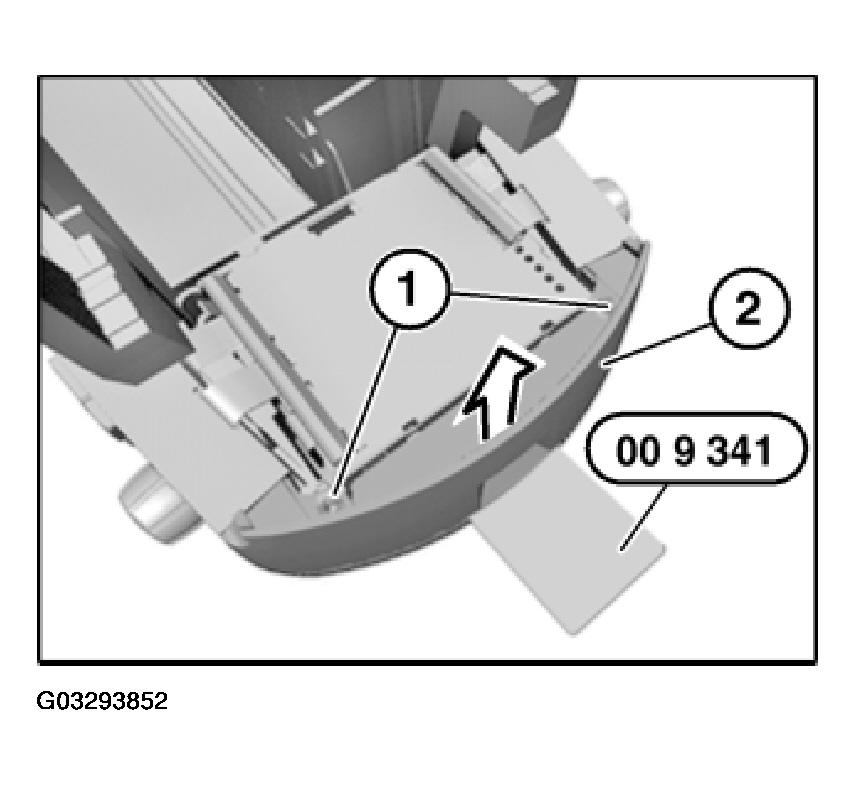

Lever out front center armrest trim (2) with special tool 00 9 341 and remove and direction of arrow.

Fig 2: Screws, Center Armrest Trim, Special Tool (00 9 341) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

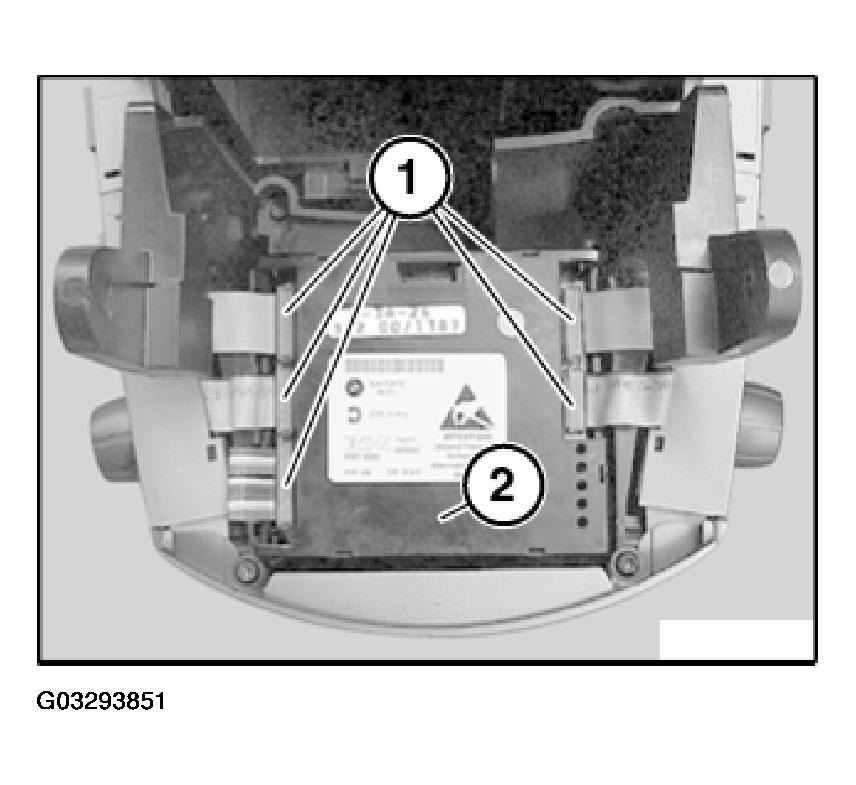

Unlock catches (1), feed out control unit in center armrest (2) in direction of arrow and remove.

Fig 3: Catches, Center Armrest Control Unit And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

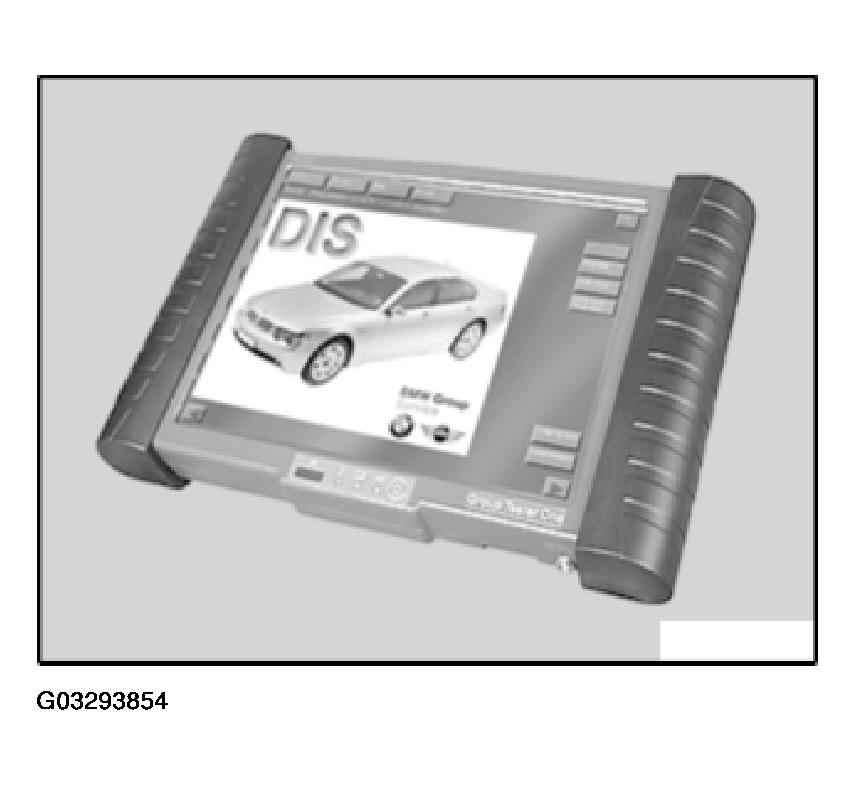

Fig 4: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
