61 31 162 Removing And Installing/Replacing Front Left Or Right Switch Combination

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove switch combination for seat adjustment. Refer to 61 31 203 REPLACING SWITCH COMBINATION FOR SEAT ADJUSTMENT .

Unlock both retaining hooks (1) and detach seat adjustment switch (2) in direction of arrow from front switch combination (3).

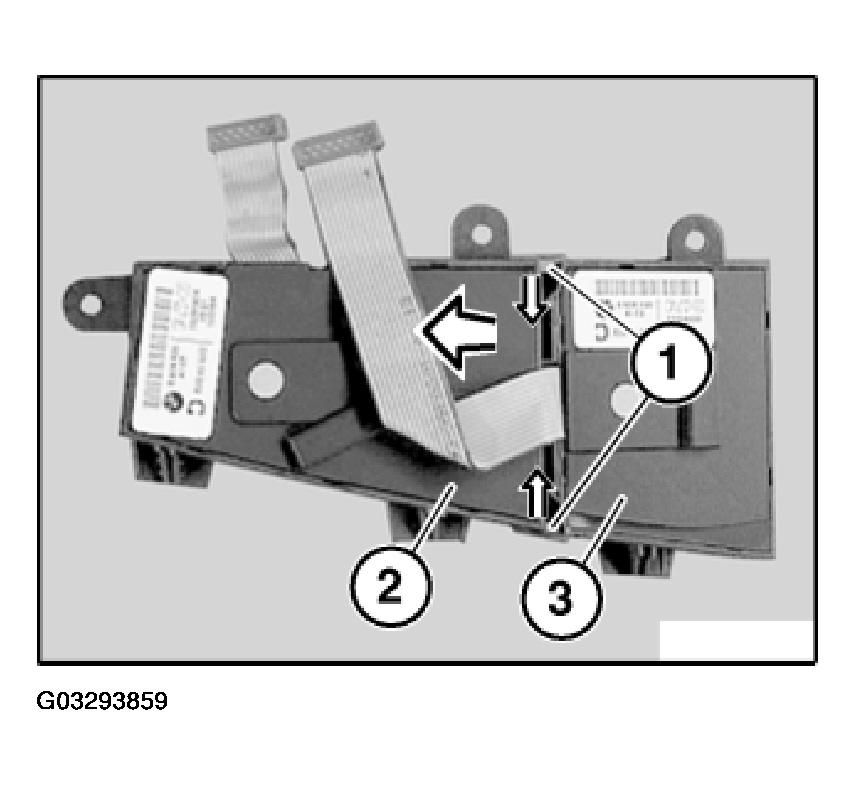

Fig 1: Retaining Hooks, Seat Adjustment Switch, Front Switch Combination And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Both retaining hooks (1) of front switch combination (2) must snap fully into place.

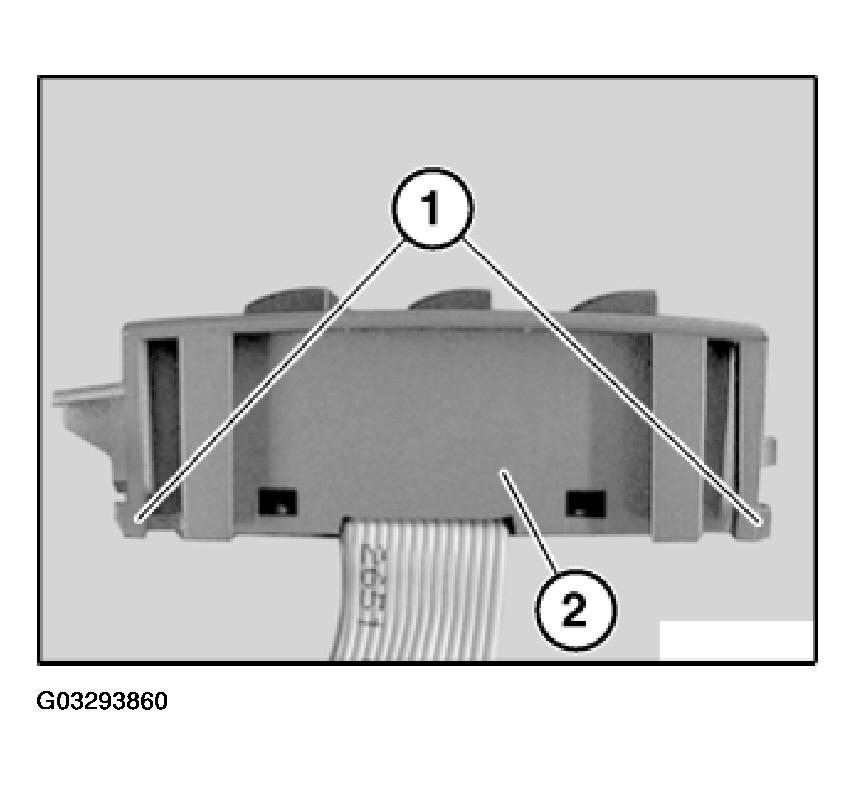

Fig 2: Retaining Hooks And Front Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.
