61 31 220 Removing And Installing/Replacing Multifunction Steering Wheel Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install airbag unit. Refer to 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (BASIC STEERING WHEEL) .

NOTE: Illustration shows steering wheel removed.

Disconnect plug connection (1).

Release screws (2).

Remove multifunction steering wheel switch (3).

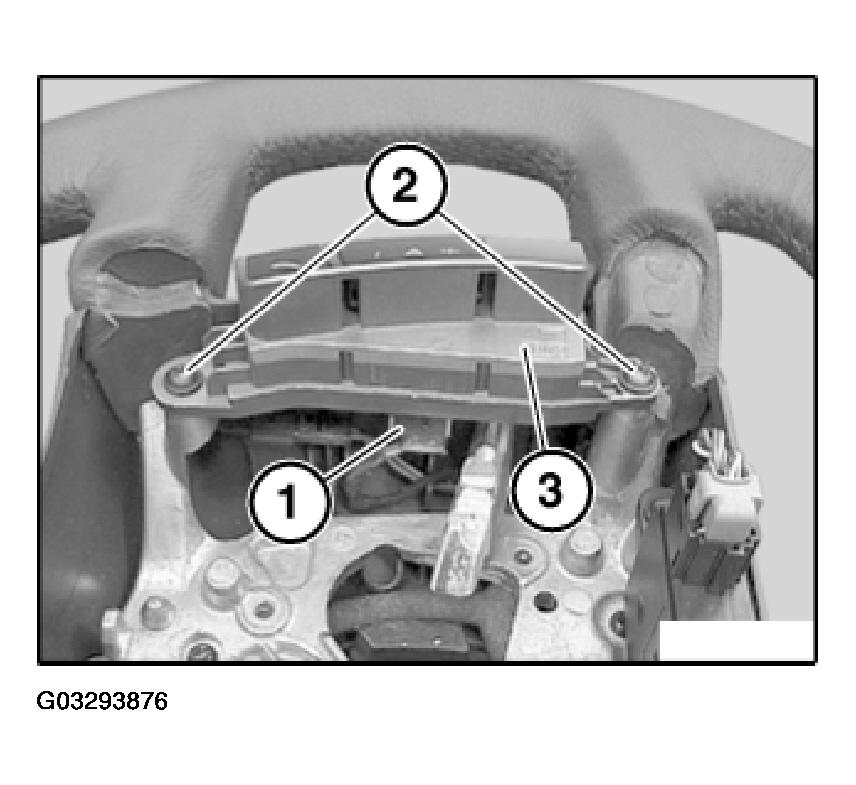

Fig 1: Multifunction Steering Wheel Switch, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
