61 31 261 Removing And Installing/Replacing Gear Selection Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front section of steering column cover. Refer to 32 31 010 REMOVING AND INSTALLING/REPLACING FRONT SECTION OF STEERING COLUMN COVER .

Release screws (1).

Remove gear selection switch (2) in direction of arrow.

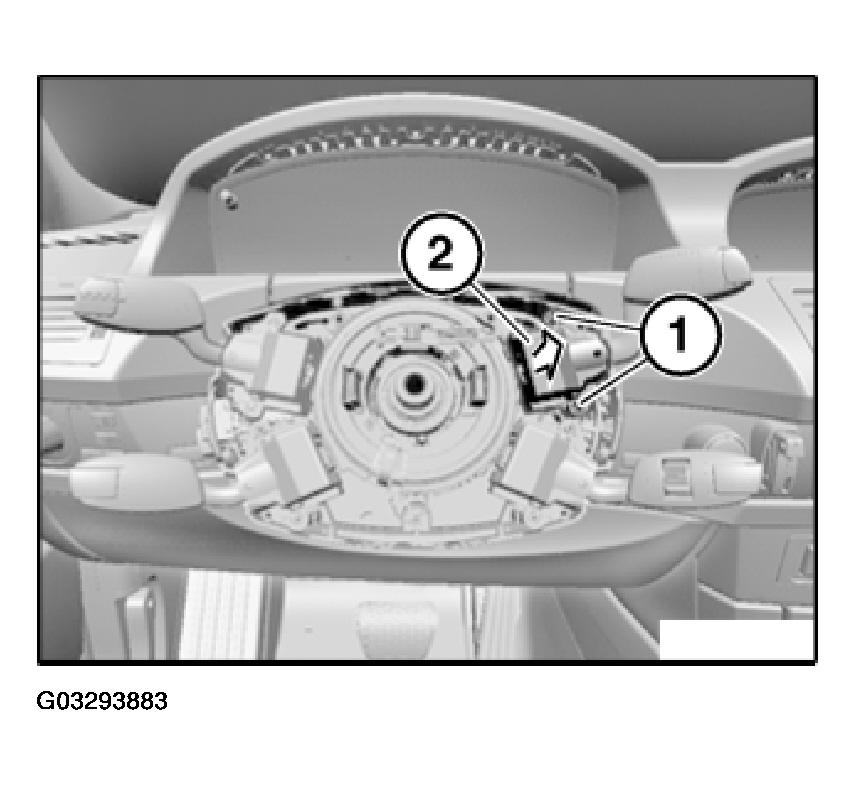

Fig 1: Gear Selection Switch, Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seat gear selector switch (2) with integrated pin housing (1) exactly in fixture for steering column control.

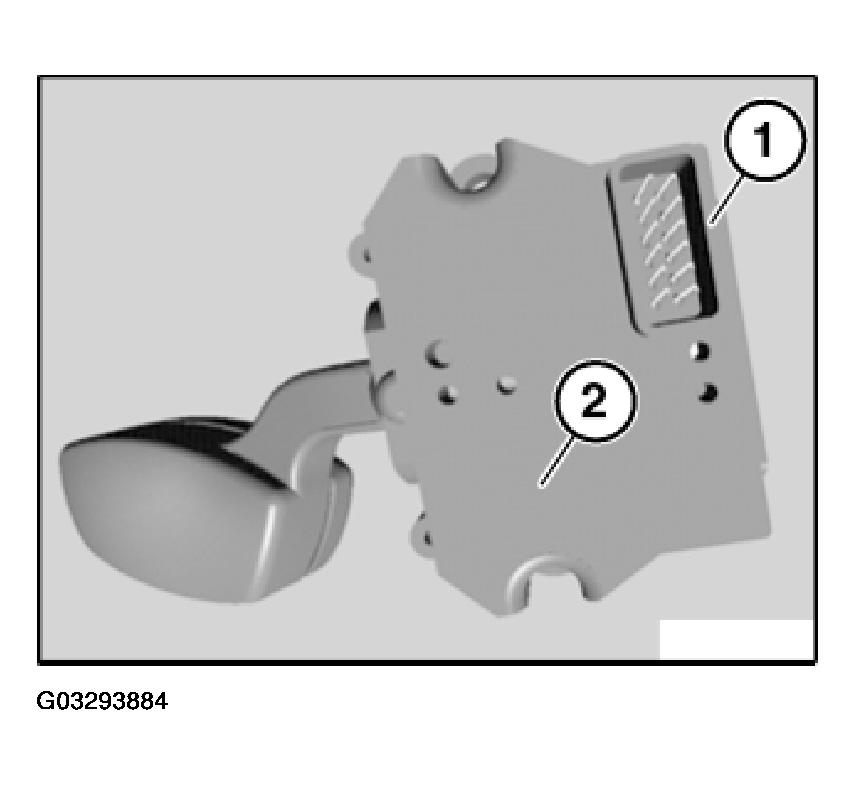

Fig 2: Gear Selector Switch And Integrated Pin Housing

Courtesy of BMW OF NORTH AMERICA, INC.
