61 35 196 Removing And Installing (Replacing) Control Unit For Automatic Rear Lid Actuation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove flap in right luggage compartment wheel arch trim. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Disconnect plug connection (1).

Release nut (2) and remove control unit for automatic rear lid actuation (3).

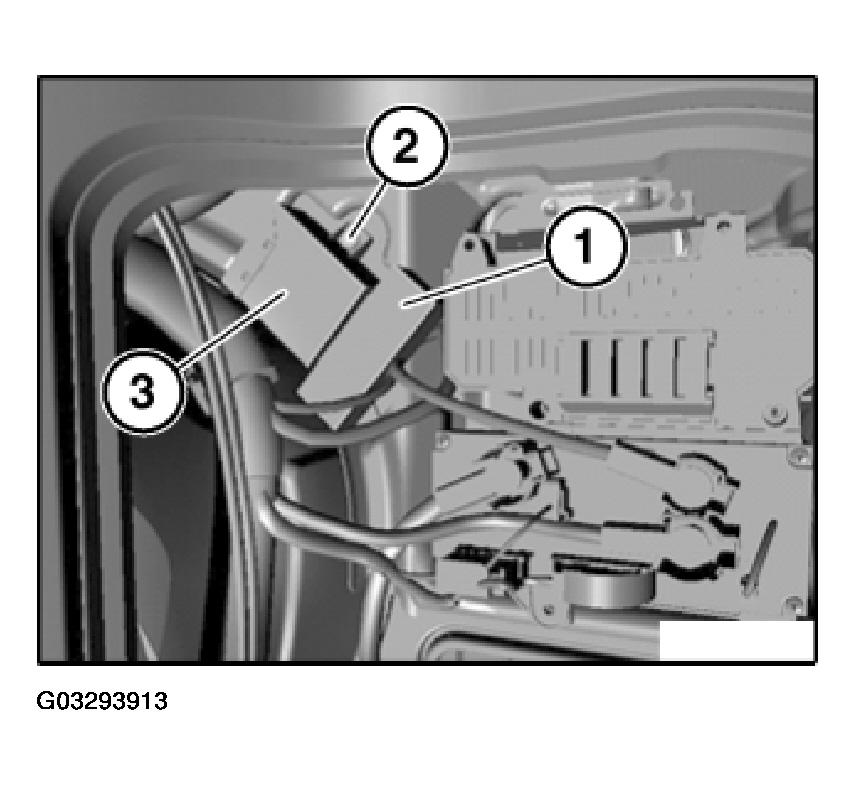

Fig 1: Automatic Rear Lid Actuation Control Unit, Plug Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

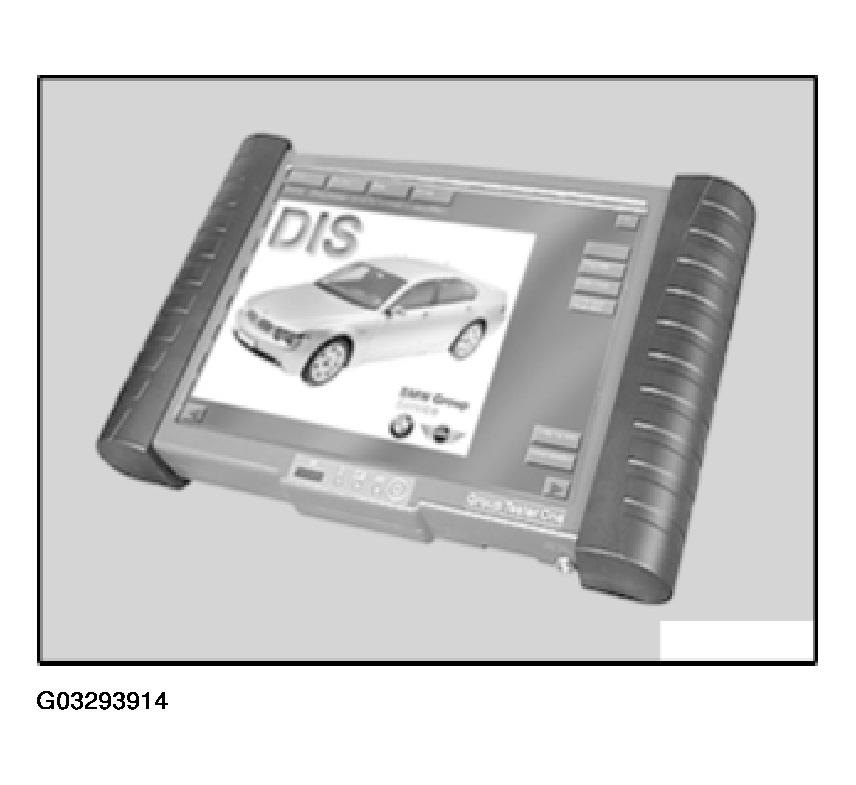

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
