61 35 960 Removing And Installing/Replacing Interior Antenna For Comfort Access System - Driver's Side Rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove panel for left (bottom) door pillar. 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .
Remove rear (inside) left entrance cover strip.

Release expansion rivets (1).

Fold up cable duct (2).

Unlock plug connection (4) and disconnect.

Remove interior antenna for comfort access system (3) in direction of arrow.

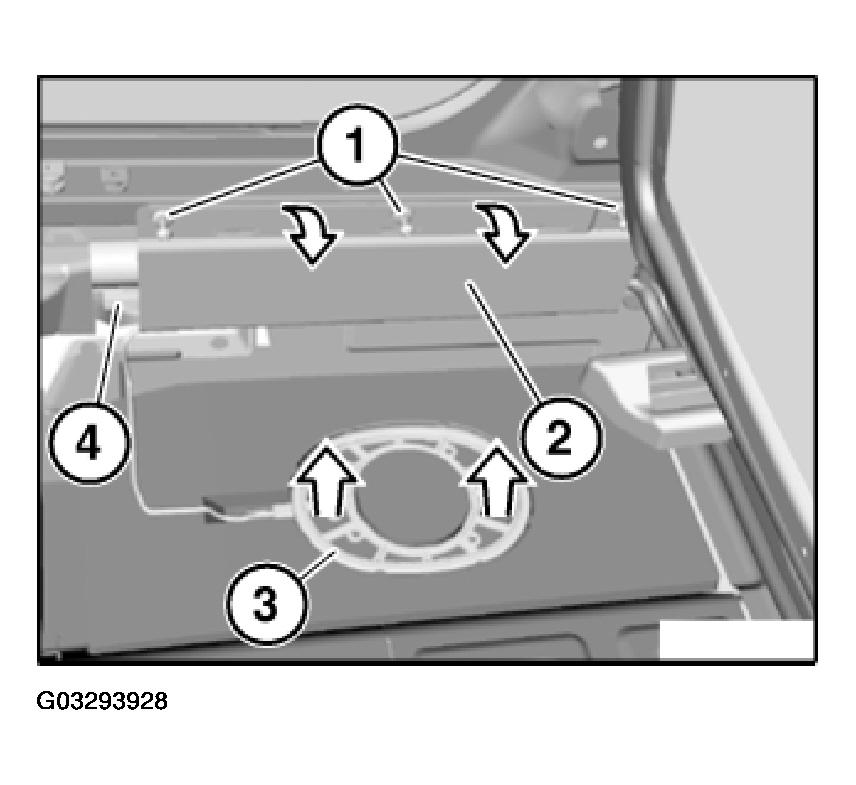

Fig 1: Expansion Rivets, Cable Duct, Plug Connection, Comfort Access System Interior Antenna And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.
