61 71 016 Removing And Installing/Replacing A Jet Nozzle In Windshield Washer System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The procedure for removing the left and right spray nozzles is different.

Removing Left Spray Nozzle:

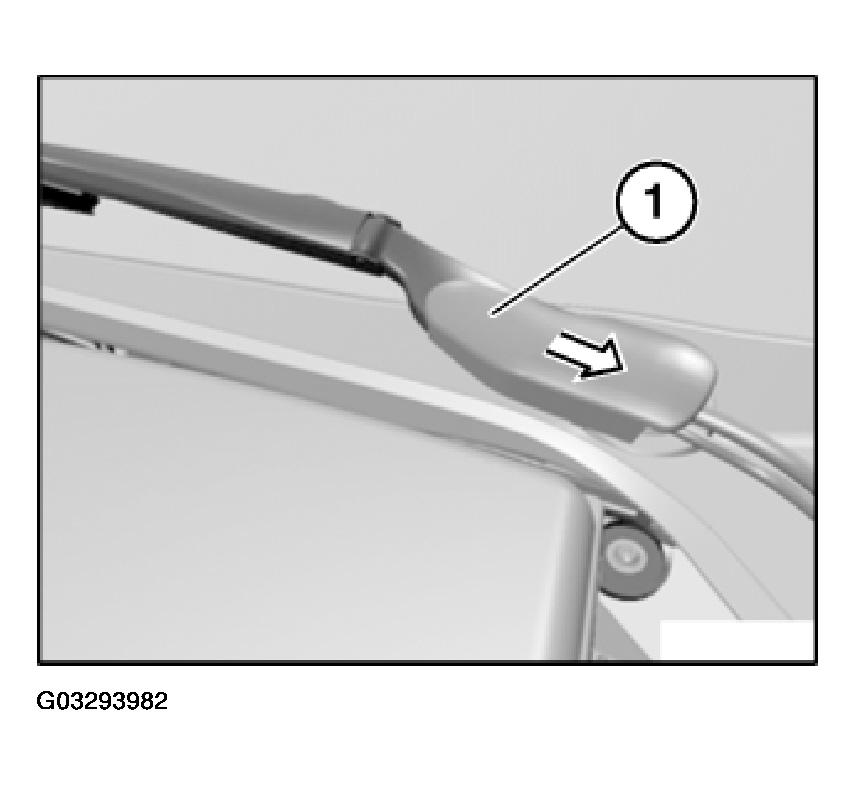

Remove cover cap (1) in direction of arrow.

Fig 1: Cover Cap And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

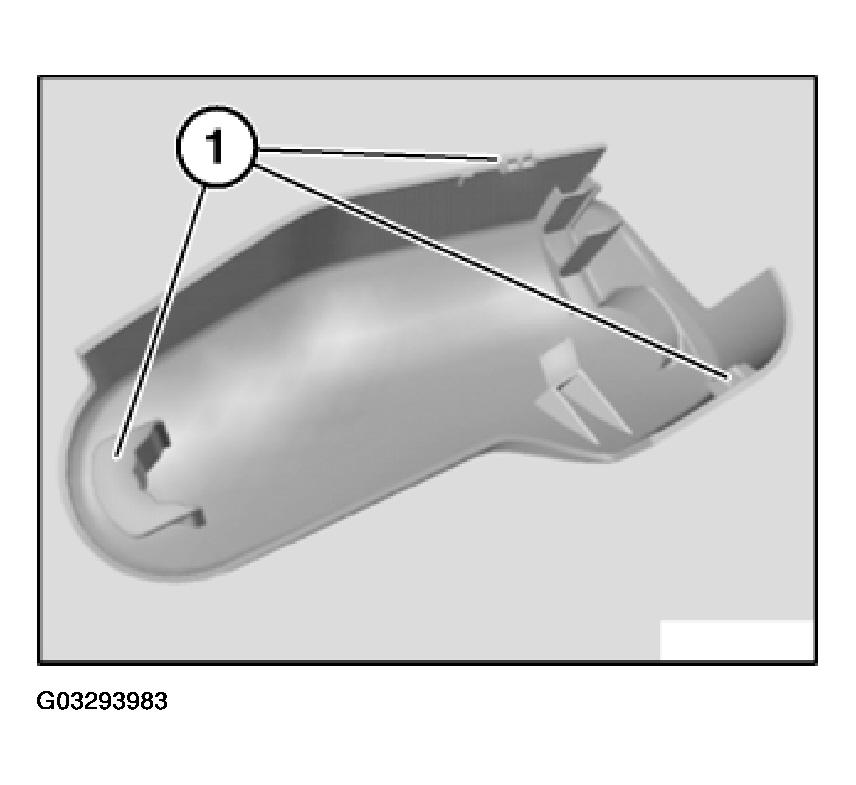

Make sure locks (1) are correctly engaged.

Fig 2: Cover Cap Locks

Courtesy of BMW OF NORTH AMERICA, INC.

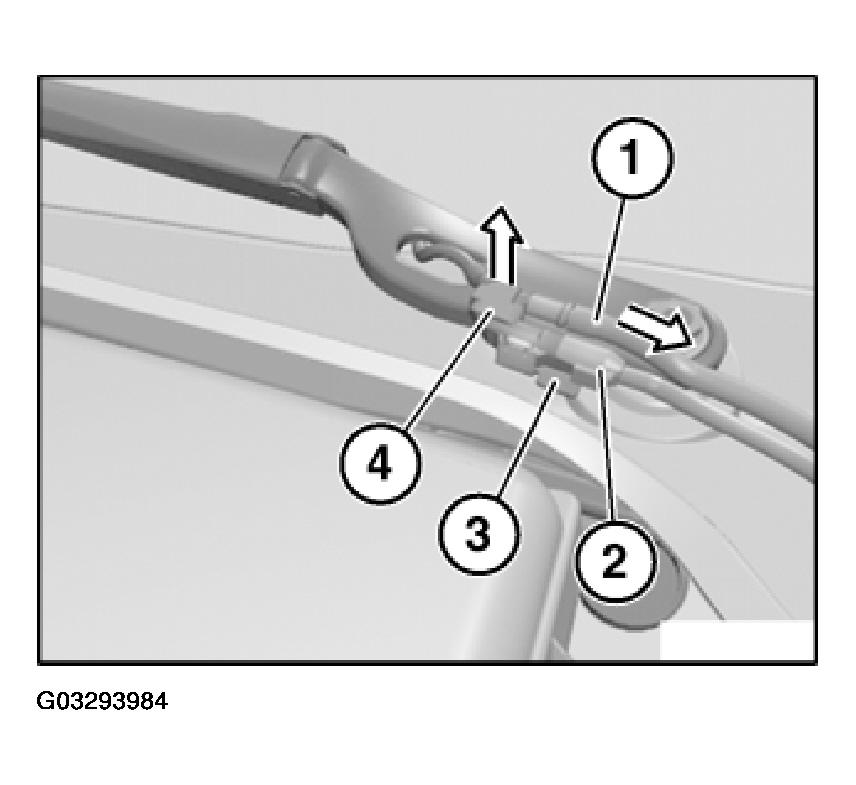

Unlock plug (2) and detach.

Release distributor (4) and detach from holder (3) towards top.

IMPORTANT: At low outside temperatures, carefully heat washer fluid line (1) in area of distributor (4) with hot air blower. Otherwise distributor (4) may break off.

Detach washer fluid line (1) by turning.

Fig 3: Plug, Washer Fluid Line, Holder, Distributor And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Move wipers into fold-back position:

Turn terminal "R" on and then immediately off again.
Press wiper lever upwards and keep pressed for approx. 3 seconds until wiper arms stop in roughly vertical position (fold-back position).
Fold wiper arm away from windshield.

NOTE: Complete Spray Nozzle Consists Of:

High-pressure nozzle.
Washer fluid line.
Multifunction element.

The multifunction element acts as both the holder of the washer fluid line and cover for the wiper arm.

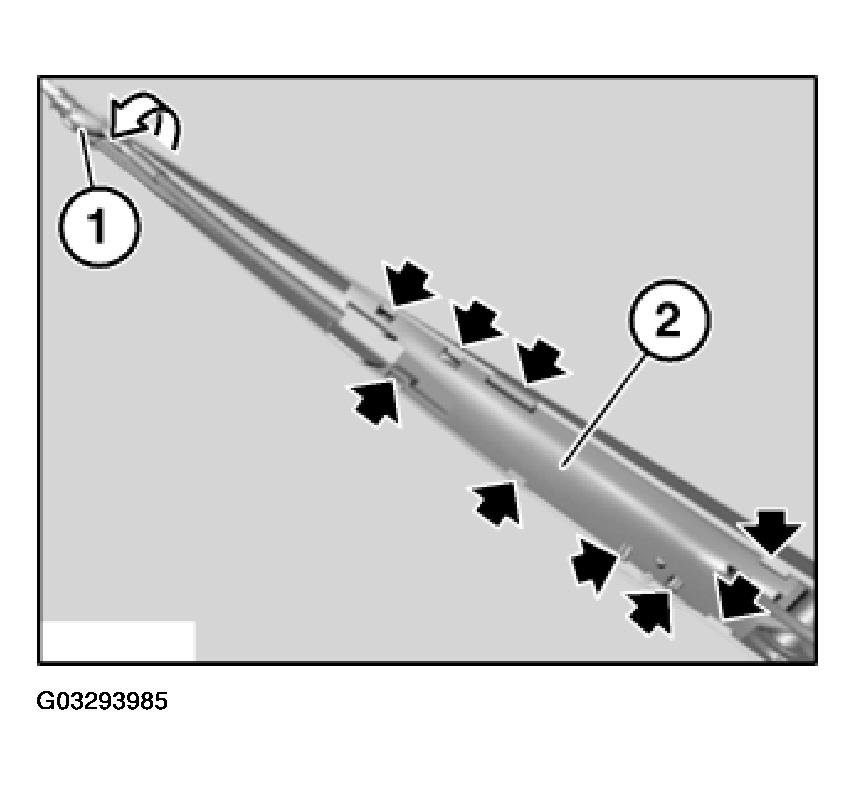

Unlock high-pressure nozzle (1) and remove in direction of arrow.

Installation:

Make sure high-pressure nozzle (1) is correctly locked in wiper arm.

Release locks of multifunction element (2).

Remove multifunction element (2).

Feed out distributor through opening on wiper arm.

Fig 4: High-Pressure Nozzle, Multifunction Element, Locks And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

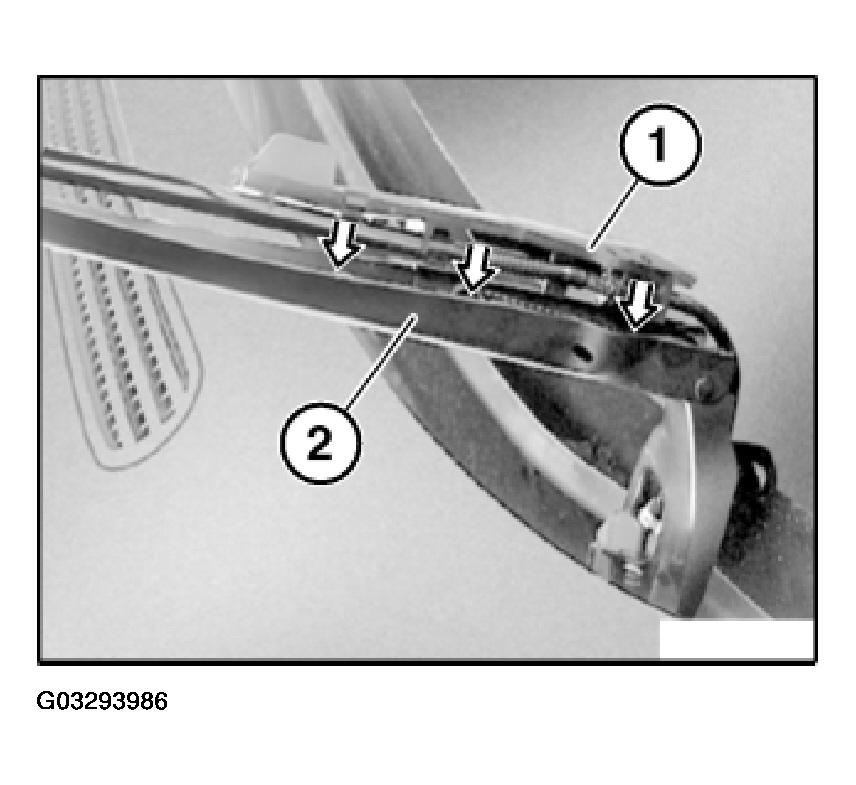

Make sure multifunction element (1) engages correctly in wiper arm (2).

Fold wiper arm back onto windshield.

Fig 5: Multifunction Element, Wiper Arm And Installation Direction

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Spray nozzle cannot be adjusted.

IMPORTANT: Risk of damage!

Fold wiper arm onto windshield before turning on terminal "R" or ignition.

Switch on terminal "R".

Move windshield washer system into rest position by one touch wiping.

Removing Right Spray Nozzle:

Necessary Preliminary Tasks:

Remove right windshield wiper arm. Refer to 61 61 101 REMOVING AND INSTALLING/REPLACING BOTH WINDSCREEN WIPER ARMS .

Unlock high-pressure nozzle (1) and remove in direction of arrow.

Release locks of multifunction element (2).

Remove multifunction element (2).

Installation:

Make sure high-pressure nozzle (1) and multifunction element (2) are correctly locked in wiper arm.

Fig 6: High-Pressure Nozzle, Multifunction Element, Locks And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

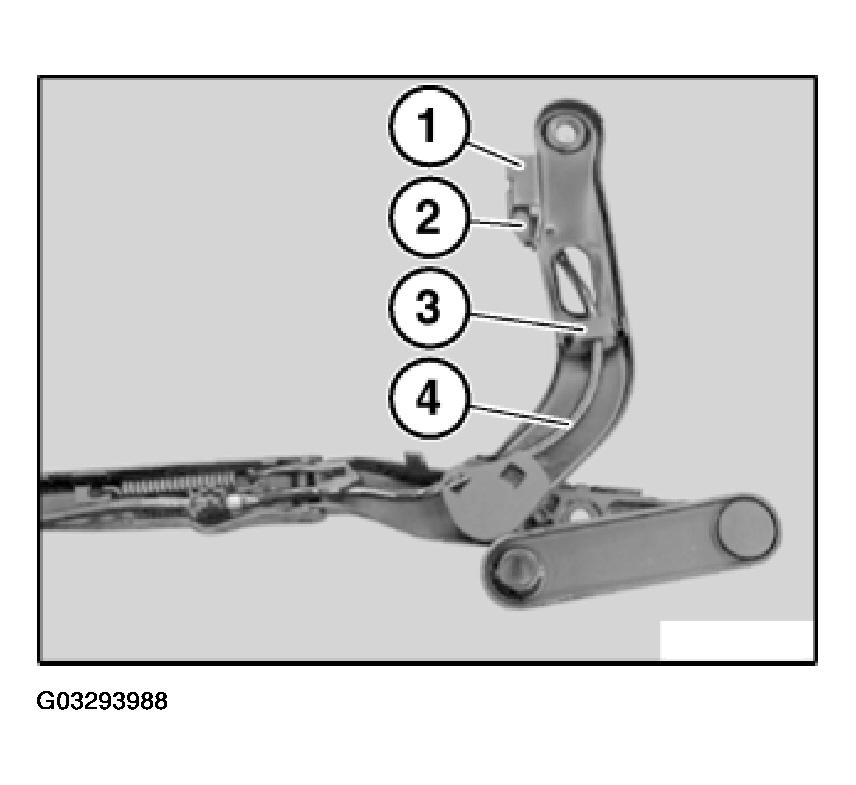

Unlock fitting (2) and detach from holder (1).

Unlock retainer (3) and remove.

Feed out washer fluid line (4).

Fig 7: Washer Fluid Line, Fitting, Holder And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
