31 00... Front axle + steering: Perform wheel alignment after specified repair work

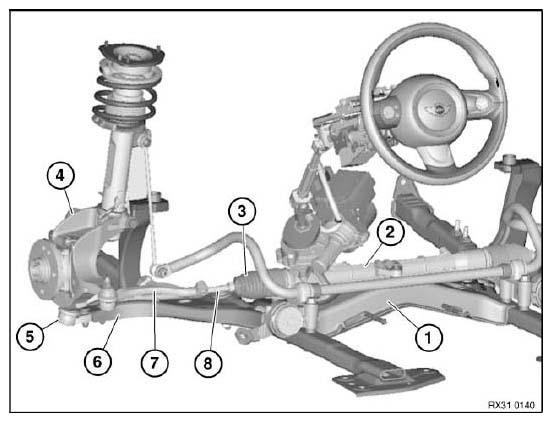

Perform wheel alignment after the following repair work:
- Release the following screw connection:
- Steering box to front axle support
- Wheel control joint to wishbone
- Track rod end to track rod
- Support bearing on body (when centering is not available)
- Replacement of following parts:
- Front axle support
- Steering box
- Gaiter (if the tie rod end has to be screwed off)
- Swivel bearing
- Wheel guide joint
- Wishbone
- Track rod end
- Track rod
See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK/RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
