61 13 ... Circular Plugs, 7-, 8-Pin, System D2.5

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

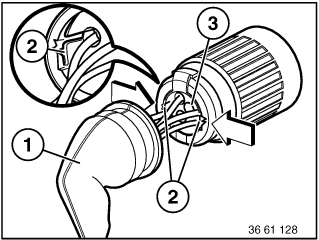

Carefully pull off rubber grommet (1).

Carefully push back retaining lugs (2) of internal connector (3).

Fig 1: Identifying Rubber Grommet, Retaining Lugs, And Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

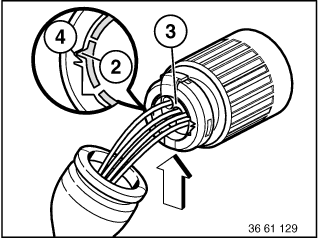

Slide internal connector (3) in direction of arrow until retaining lugs (2) lock into locking groove (4).

Fig 2: Identifying Internal Connector, Retaining Lugs, And Locking Groove

Courtesy of BMW OF NORTH AMERICA, INC.

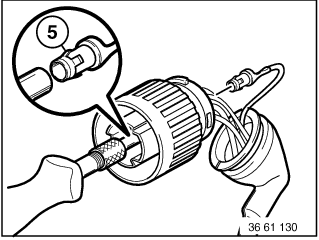

With special tool 61 1 132 (ejector), press back arrester hook (5) of appropriate contact and pull out cable.

Fig 3: Identifying Arrester Hook And Special Tool 61 1 132

Courtesy of BMW OF NORTH AMERICA, INC.
