51 61 011 Removing And Installing/Replacing V-Strut, Front Axle Carrier, Left Or Right
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety instructions
for raising the vehicle. Driving without V-struts is not permitted! See 00...... LIFTING VEHICLE WITH A LIFTING PLATFORM
.
Necessary preliminary tasks:
- Remove front underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

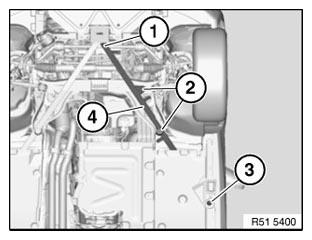

Release screws (1, 2, 3).
Remove V-strut (4) towards front.
Installation:
Replace screws.
Make sure screws are installed in correct positions.
- Screw (1) M12x30
- Screw (2) M10x33
- Screw (3) M12x35
Tightening torque. Refer to 51 71 10AZ in 51 71 SEALS AND LOOSE BODY PARTS .
