31 33 001 (Removing And Installing) Replacing Front Left Or Right Spring Strut Support Bearing

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Procedure is described in 31 31 031 REPLACING FRONT LEFT OR RIGHT SPRING STRUT SHOCK ABSORBER .

Replacement:

Vehicle with spacer ring:

NOTE: Spacer ring (A) is fitted in vehicles with "rough road package" version.

Unscrew nuts.

Remove spacer ring (A) from support bearing.

Installation:

Align spacer ring (A) using centering pin (1) to support bearing and place in position.

Fig 1: Identifying Spacer Ring And Centering Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Replace self-locking nuts.

Tightening torque. Refer to 31 31 1AZ in 31 31 SPRING STRUTS .

If necessary, twist/drive out centering pin (1).

NOTE: If a support bearing (2) was fitted without centering pin (1), the centering pin (1) of the new support bearing (2) must be driven or twisted out.

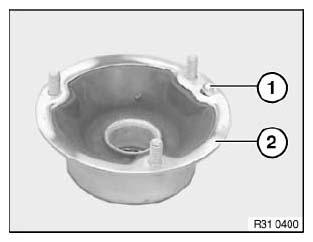

Fig 2: Identifying Centering Pin And Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
