17 00... Instructions for repair work on cooling system: Recycling
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Catch and dispose of drained coolant.
Observe country-specific waste disposal regulations.
NOTE:

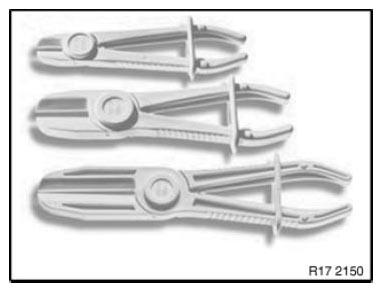

To disconnect coolant hoses, use commercially available disconnect tools such as HAZET brand tools (see table).
| HAZET no.: | Designation |
|---|---|
| 4590-1 | Disconnect-pliers, length (mm): 150 |
| 4590-2 | Disconnect-pliers, length (mm): 180 |
| 4590-3 | Disconnect-pliers, length (mm): 253 |
| 4590 / 2 | Disconnect-plier set |
| 4590 / 3 | Disconnect-plier set |
NOTE:
Tightening torque for hose clamps
| WAF 5 | 1.0 - 1.5 Nm |
| WAF 6 | 2.5 - 3.5 Nm |
Instructions for dismantling/assembly of coolant hose quick-release couplings
