84 10 050 Removing and installing (replacing) USB hub
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Necessary preliminary tasks
- Remove GEAR SELECTOR SWITCH CARRIER

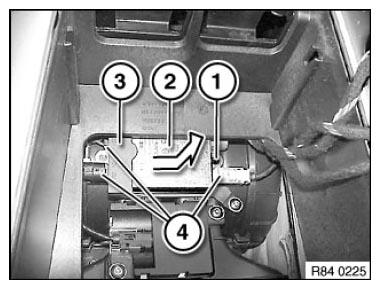

Unlock catch (1) and guide USB hub (2) in direction of arrow out of holder (3).
Disconnect plug connection (4).
Installation:
Make sure USB hub (2) is correctly seated in holder (3).
Make sure wiring harness is correctly laid.
