Necessary preliminary work
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
- Lower FRONT AXLE SUPPORT .
- Remove BOTH LOWER CONTROL ARMS FROM FRONT AXLE CARRIER .
- Remove BOTH TENSION STRUTS FROM FRONT AXLE CARRIER .
- Undo ANTI-ROLL BAR from front axle support.
- If necessary, release vacuum line for engine mount from front axle support.
Remove both engine mounts from front axle support . See 22 11 011 REPLACING LEFT ENGINE MOUNT (N63, S63) or 22 11 001 REPLACING RIGHT ENGINE MOUNT (N63, S63) .

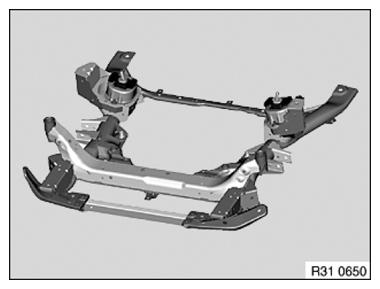

Take front axle support down and set down on a suitable surface.
Installation note:
Use previous front axle support as a template for modifying or replacing small parts.
