31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

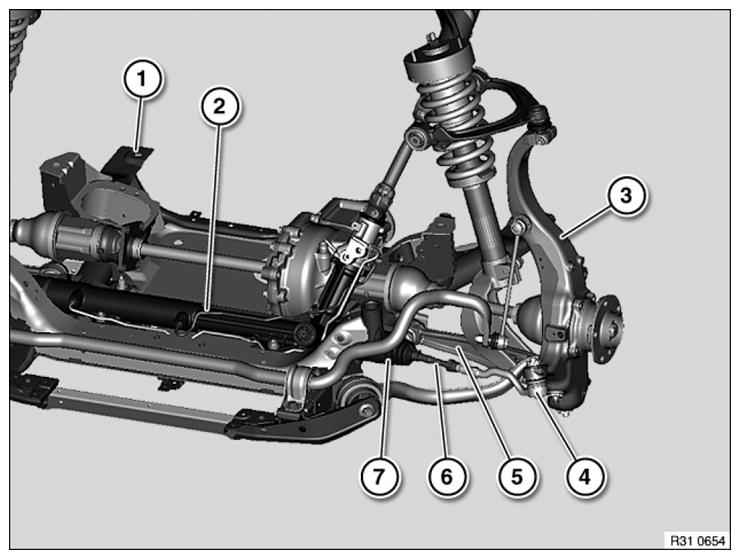

Fig 1: Identifying Front Axle Support, Steering Gear, Swivel Bearing, Lower Wishbone, Track Rod And Track Rod End

Courtesy of BMW OF NORTH AMERICA, INC.

WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:
- Release of following screw/bolt connections:
  - Steering gear to front axle carrier
  - Lower wishbone to front axle support
  - Track rod end to track rod
- Replacement of following parts:
  1. Front axle support
  2. Steering gear
  3. Swivel bearing
  4. Track rod end
  5. Lower control arm / rubber mount
  6. Track rod
  7. Gaiter (if the tie rod end has to be screwed off)
