66 54 005 Removing and installing/replacing control unit for Night Vision System: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:

Disconnect BATTERY CABLE
Remove FOLD-DOWN COMPARTMENT ON DRIVER'S SIDE

Release plug connections (1) and disconnect.

Release bolt (2) and remove control unit (3) in direction of arrow.

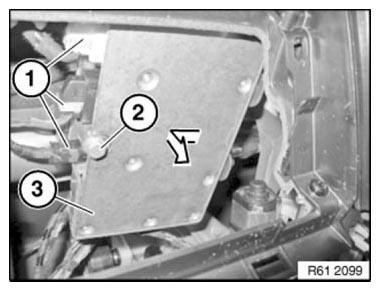

Fig 1: Removing Control Unit Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) on control unit (2) must be seated correctly in the correct bracket.

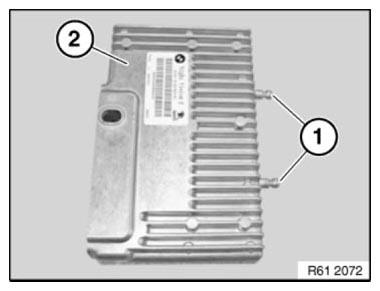

Fig 2: Identifying Guides On Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
