17 11 370 Removing And Installing/Replacing Cooling Loop For Hydraulic Steering (N55, N57 D30 U/O/T 0/1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: When carrying out repair work on the oil and cooling circuit, protect the alternator against dirt contamination.

Cover alternator with suitable materials.

Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary work:

Remove fan cowl . See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (N57 D30 U/O/T 0/1) or 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (N55) .

Release screws (1) on left and right from cover (3).

Tightening torque: 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque: 17 10 1AZ .

Lift out cover (3).

Fig 1: Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

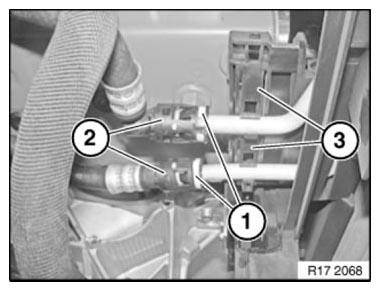

Remove circlips (1).

Unlock lines (2) and detach from cooling loop.

Press in latch mechanisms (3) and pull cooling loop upwards.

IMPORTANT: Catch and dispose of emerging oil.

Installation note:

Reinstall circlips.

Fig 2: Circlips, Latch Mechanisms And Lines

Courtesy of BMW OF NORTH AMERICA, INC.

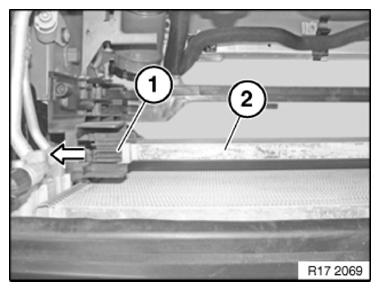

Release lock (1) in direction of arrow.

Lift out oil cooling loop (2).

Fig 3: Lifting Out Oil Cooling Loop

Courtesy of BMW OF NORTH AMERICA, INC.

After completing this repair work, check the oil level in the oil reservoir of hydraulic steering. See 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) or 32 13 006 BLEEDING POWER STEERING UNIT .

If Dynamic Drive is fitted in the vehicle, execute START-UP WITH A TEST RUN .

Reassemble the vehicle.

Check hydraulic steering for leak tightness.
