Removing and installing/replacing vibration damper (B36 engine) (Cooper base)

Special tools required:

• 11 8 180
• 2 288 159

Preliminary work needed:

• Remove FRONT UNDERBODY PROTECTION .
• Remove THRUST FIELD .
• Remove FRONT RIGHT WHEEL ARCH COVER .
• Remove DRIVE BELT .

Removal:

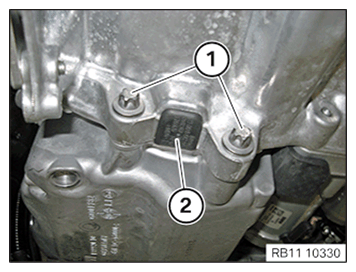

Undo the transmission bolts (1).

Remove protective cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

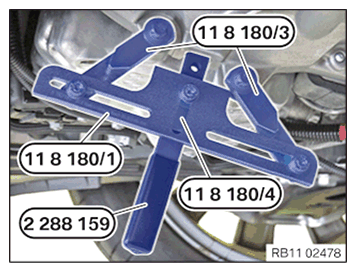

Prepare special tool 11 8 180/1 with special tool 11 8 180/3, 11 8 180/4 and 2 288 159.

Fix the special tool 11 8 180 with the housing screws.

Slide the special tool 2 288 159 in the transmission housing and fix the flywheel.

Tighten down all screws.

Courtesy of BMW OF NORTH AMERICA, INC.

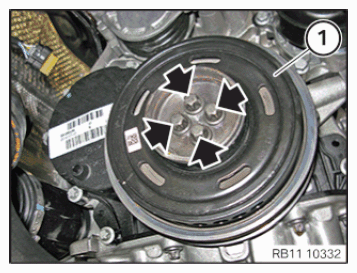

Slacken all screws on the vibration damper (1).

Remove vibration damper (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position vibration damper (1).

Tighten down all screws.

Tightening torque 11 23 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Undo the Torx screws.

Remove special tool 11 8 180 with 2 288 159.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down Torx screws (1).

Tightening torque 23 00 1AZ .

Mount protective cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install DRIVE BELT .
• Install FRONT RIGHT WHEEL ARCH COVER .
• Install THRUST FIELD .
• Install FRONT UNDERBODY PROTECTION .
