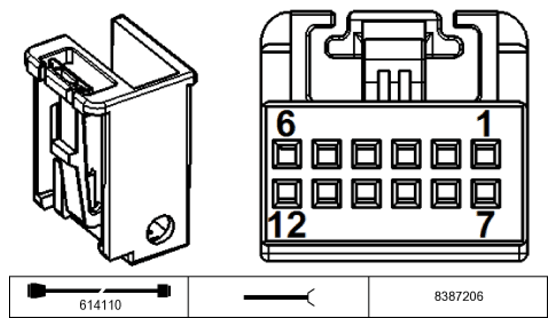

Chronometer A330*1B Connector End View
Pin Assignments At Plug Connector A330*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Power supply, terminal 30B | Fuse F89 |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | E/A | PT-CAN bus | PT-CAN bus connection |
| 7 | -- | Not used | |
| 8 | M | Ground | Ground point |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | E | Wake-up signal, terminal 15 | Solder connector |
| 12 | E/A | PT-CAN bus | PT-CAN bus connection |
