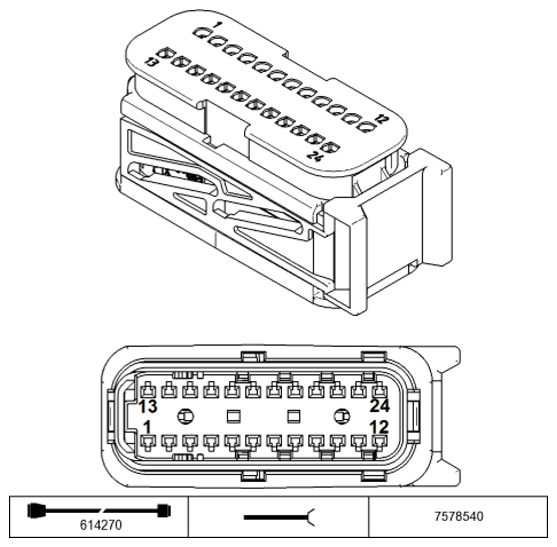

Digital Motor Electronics A46*6B Connector End View
Pin Assignments At Plug Connector A46*6B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Supply Fuel injector, cylinder 1 | Fuel injector, cylinder 1 |
| 2 | A | Supply Fuel injector, cylinder 2 | Fuel injector, cylinder 2 |
| 3 | A | Supply Fuel injector, cylinder 3 | Fuel injector, cylinder 3 |
| 4 | A | Activation | Fuel injector, cylinder 4 B48 engine |
| 5 | A | Activation Fuel injector, cylinder 1 | Fuel injector, cylinder 1 |
| 6 | A | Activation Fuel injector, cylinder 2 | Fuel injector, cylinder 2 |
| 7 | A | Activation | Fuel injector, cylinder 4 B48 engine |
| 8 | A | Activation Fuel injector, cylinder 3 | Fuel injector, cylinder 3 |
| 9 | A | Activation Ignition coil, cylinder 1 | Ignition coil, cylinder 1 |
| 10 | A | Activation Ignition coil, cylinder 3 | Ignition coil, cylinder 3 |
| 11 | A | Activation Ignition coil, cylinder 2 | Ignition coil, cylinder 2 |
| 12 | A | Activation | Ignition coil, cylinder 4 B48 engine |
| 13 | -- | Not used | |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | A | Supply Ignition coil, cylinder 1 | Ignition coil, cylinder 1 |
| 22 | A | Supply Ignition coil, cylinder 3 | Ignition coil, cylinder 3 |
| 23 | A | Supply Ignition coil, cylinder 2 | Ignition coil, cylinder 2 |
| 24 | A | Activation | Ignition coil, cylinder 4 B48 engine |
