Head Unit A42*10B Connector End View

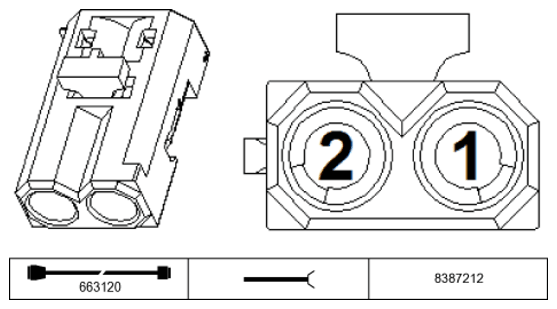

Fig 1: Head Unit A42*10B Connector End View
G11234414Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector A42*10B

Pin Type Description /Signal type Connection /Measuring information
1 E/A MOST bus signal DVD changer with DVD changer
1 E/A MOST bus signal Instrument cluster control unit without DVD changer
2 E/A MOST bus signal Instrument cluster control unit without DVD changer
2 E/A MOST bus signal DVD changer with DVD changer
