Head Unit A42*25B Connector End View

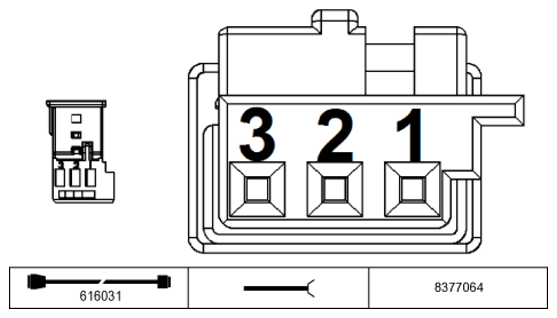

Fig 1: Head Unit A42*25B Connector End View
G11234419Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector A42*25B

Pin Type Description /Signal type Connection /Measuring information
1 A Data line Central instrument
2 M Ground Central instrument
