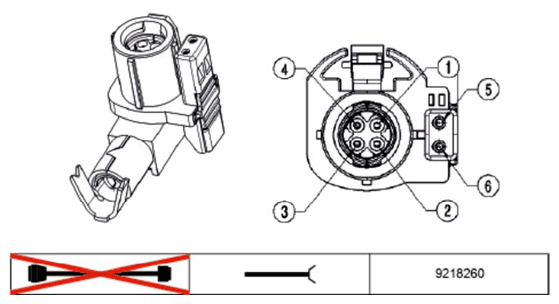

Head Unit A42*5B Connector End View
Pin Assignments At Plug Connector A42*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 0 | M | Shield | Central information display |
| 1 | E/A | Data line | Central information display |
| 2 | E/A | Data line | Central information display |
| 3 | E/A | Data line | Central information display |
| 4 | E/A | Data line | Central information display |
| 5 | A | Supply | Central information display |
| 6 | E | Ground | Central information display |
