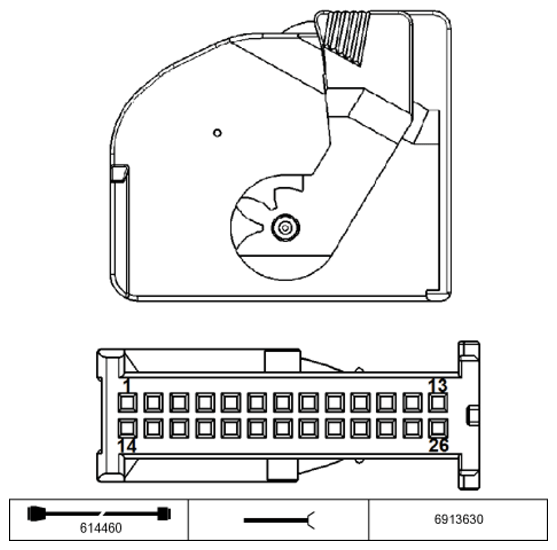

Heating/Air Conditioning System A195*1B Connector End View
Pin Assignments At Plug Connector A195*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Power supply, terminal 30F | Audio control panel Headunit High |
| 1 | A | Power supply, terminal 30F | Control panel for heating and air conditioning system Headunit Basis |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | E | Signal Locator lighting | Body Domain Controller |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | M | Ground | Control panel for heating and air conditioning system Headunit Basis |
| 12 | A | Ground | Audio control panel Headunit High |
| 13 | -- | Not used | |
| 14 | E | Power supply, terminal 30F | Fuse F11 |
| 15 | -- | Not used | |
| 16 | E/A | Local CAN bus signal | Body Domain Controller |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | M | Ground | Body Domain Controller |
| 22 | E/A | K-CAN4 bus connection | Body Domain Controller |
| 23 | E/A | K-CAN4 bus connection | Body Domain Controller |
| 24 | -- | Not used | |
| 25 | E/A | LIN bus signal | Control panel for heating and air conditioning system Headunit Basis |
| 25 | E/A | LIN bus signal | Audio control panel Headunit High |
| 26 | -- | Not used |
