Interior Light, Front Non-F57 E131*1B Connector End View

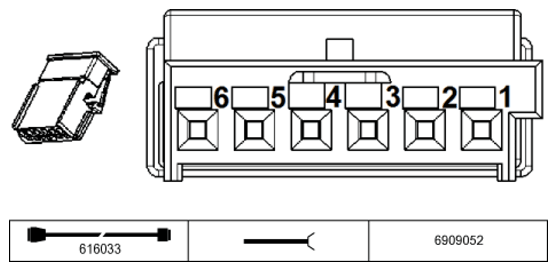

Fig 1: Interior Light, Front Non-F57 E131*1B Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector E131*1B

Pin	Type	Description /Signal type	Connection /Measuring information
1	E	Activation, interior light	Connector 58g
2	E	Switch signal, interior lighting	Body Domain Controller
3	M	Ground	Ground connector
4	E	Activation, interior light	Body Domain Controller
5	E	Activation, interior light	Solder connector
6	--	Not used
