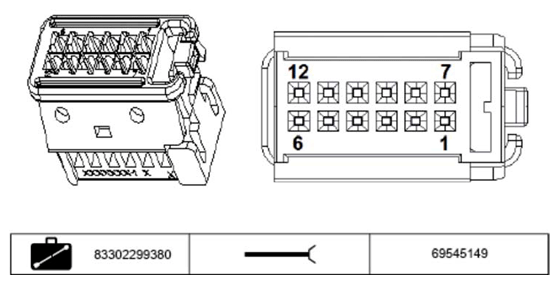

Steering Column Switch Cluster A83*2B Connector End View
Pin Assignments At Plug Connector A83*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Airbag activation, negative connection | Crash safety module |
| 2 | E | Airbag activation, positive connection | Crash safety module |
| 3 | E | Airbag activation, negative connection | Crash safety module |
| 4 | E | Airbag activation, positive connection | Crash safety module |
| 5 | E | Airbag activation, negative connection | Crash safety module |
| 6 | E | Airbag activation, positive connection | Crash safety module |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | E | Supply, terminal 15 | Fuse F58 |
| 10 | -- | Not used | |
| 11 | M | Ground | Body Domain Controller |
| 12 | -- | Not used |
