Steering Column Switch Cluster A83*6B Connector End View

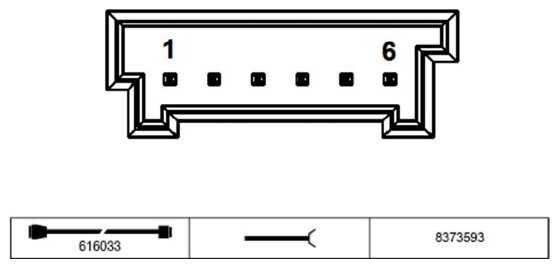

Fig 1: Steering Column Switch Cluster A83*6B Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector A83*6B

Pin	Type	Description /Signal type	Connection /Measuring information
1	E	Signal fanfares	Horn button
2	E	Signal Shift paddles	Solder connector
3	--	Not used
4	E	Ground	Solder connector
5	A	Power supply, terminal 30F	Switch block multifunction steering wheel, right
6	E/A	LIN bus signal	Solder connector
