61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Removal:

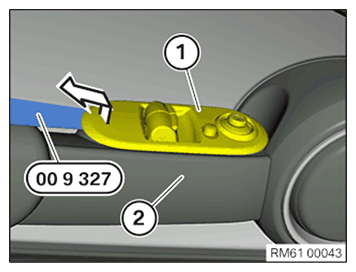

Lever power window switch (1) out of armrest (2) in arrow direction using special tool 00 9 327 .

Disconnect connector underneath and remove power electric windows switch (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

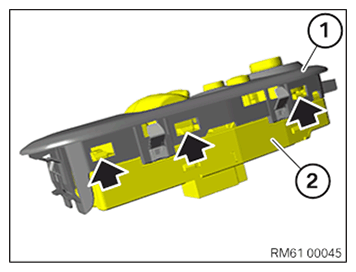

Release detents on both sides and feed power window switch (1) out of trim (2).

Join switch spare part for power electric windows (1) in cover (2).

NOTE: Ensure detent of switch for power electric windows (1) in cover (2) is correct.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

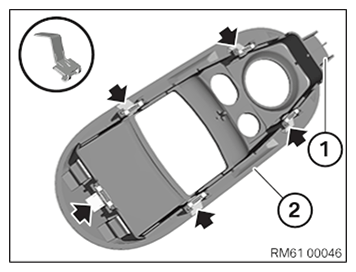

NOTE: The guide (1) and detents (2) on the trim (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector.

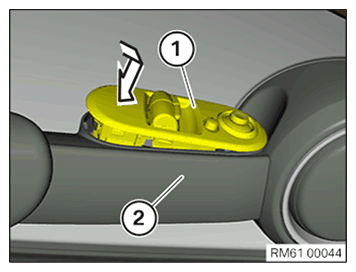

Join power electric windows switch (1) in armrest (2) in arrow direction.

NOTE: Make sure that the power window switch is correctly seated in the armrest.

Courtesy of BMW OF NORTH AMERICA, INC.
