Functional networking

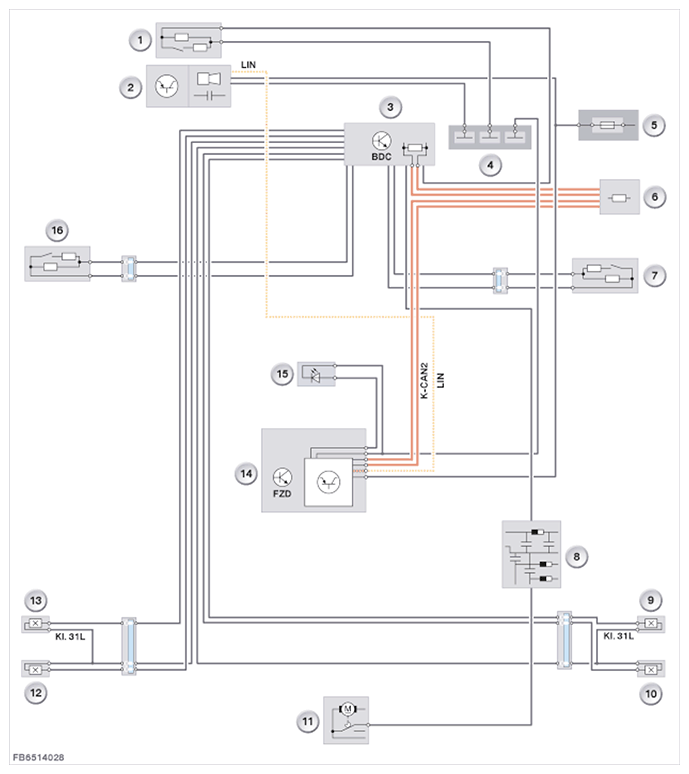

A complex system network with distributed functions residing in additional control units is needed to implement the anti-theft alarm system's functionality. The following illustration shows the functional networking.
I01 shown
| Item | Explanation |
|---|---|
| 1 | Bonnet contact switch |
| 2 | Siren with tilt alarm sensor |
| 3 | Body Domain Controller (BDC) |
| 4 | Ground connection |
| 5 | Power distribution box Life module |
| 6 | CAN terminator |
| 7 | Front passenger-door lock |
| 8 | Interference-suppression filter |
| 9 | Top rear right door contact |
| 10 | Bottom rear right door contact |
| 11 | Tailgate/tailgate lock |
| 12 | Bottom rear left door contact |
| 13 | Top rear left door contact |
| 14 | Roof function center (FZD) with ultrasonic interior sensor |
| 15 | Alarm system LED on the inside mirror |
| 16 | Driver's door lock |
