Functional description
The cell blocks with a total of 96 cells provide a nominal voltage of 355 volt.

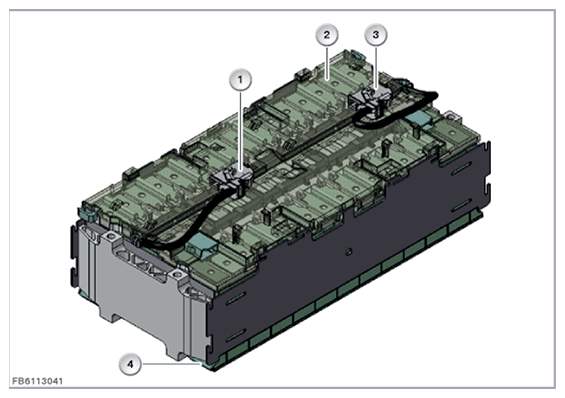

I12 shown
| Item | Explanation |
|---|---|
| 1 | Feed line to the first cell supervision circuit |
| 2 | Battery cells under cover |
| 3 | Feed lines to the second cell supervision circuit |
| 4 | Cell module |

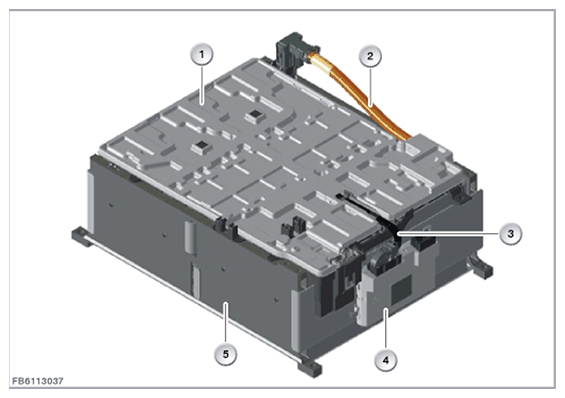

I01 shown
| Item | Explanation |
|---|---|
| 1 | Cover |
| 2 | High-voltage cable (positive connection) for the next cell block |
| 3 | Feed line to the cell supervision circuit |
| 4 | Cell supervision circuit |
| 5 | Cell module |
Each cell module is labelled with a unique serial number:
e.g. 8610459 02 72883817 130902 00001
- 8610459: seven-digit part number
- 02: two-digit revision index
- 72883817: eight-digit supplier number
- 130902: six-digit production date (year, month, day)
- 00001: five-digit serial number
