Functional networking

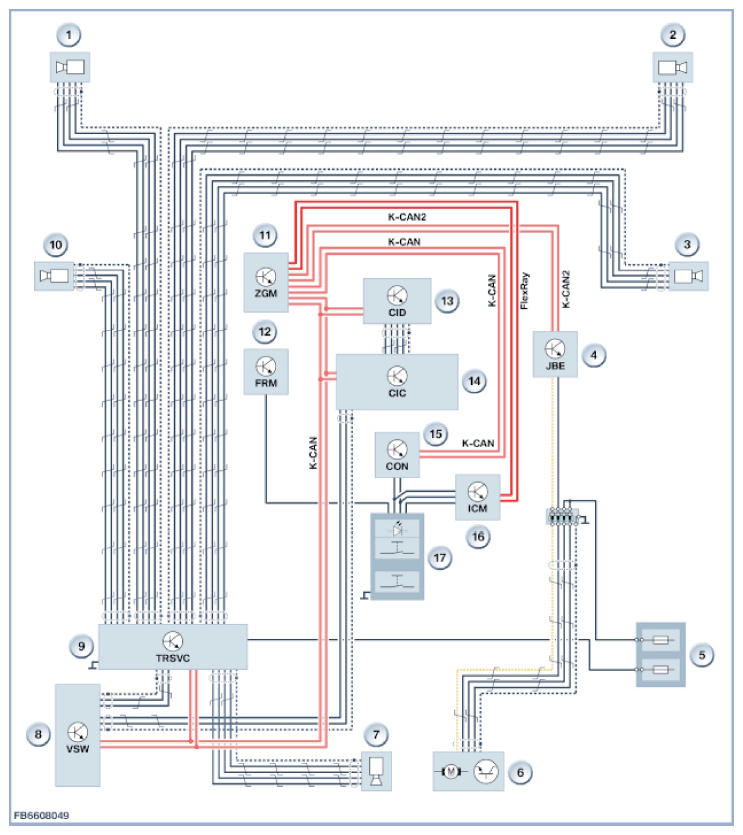

A complex system network with distributed functions in other control units is necessary for implementation of the all-round vision camera. The following graphic shows the system network.
| Item | Explanation |
|---|---|
| 1 | Bumper camera, left |
| 2 | Bumper camera, right |
| 3 | Top view camera, right |
| 4 | Junction Box Electronics (JBE) |
| 5 | Power distribution box, rear |
| 6 | F12, F13: electric motor for tailgate activation (BMW badge) |
| 7 | Rear view camera |
| 8 | Video switch (VSW), if installed |
| 9 | All-round vision camera (Top Rear Side View Camera - TRSVC) |
| 10 | Top view camera, left |
| 11 | Central gateway module (ZGM) |
| 12 | Footwell module (FRM) |
| 13 | Central information display (CID) |
| 14 | Car Information Computer (CIC) or headunit |
| 15 | Controller (CON) |
| 16 | Integrated chassis management (ICM) |
| 17 | Center console operating facility |
