KAFAS: Control unit for camera-based driver support systems

The light points, light colours and light intensities picked up by the video camera are evaluated by the KAFAS control unit. The evaluation by the KAFAS control unit results in a switch-on or switch-off recommendation. The video camera is connected to the KAFAS control unit by means of a 12- pin line. The KAFAS control unit is connected to the PT CAN.

The KAFAS control unit is supplied via terminal 15N by the front power distribution box.

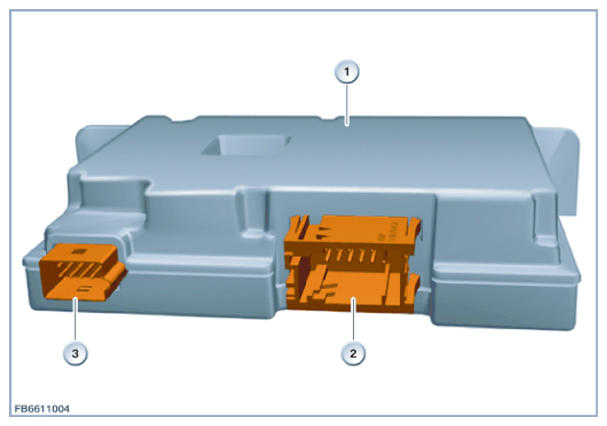

G09872275Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Camera-based driver support systems camera control unit
2 12 pin plug connection
3 10 pin plug connection
