Installing the electrical machine lid

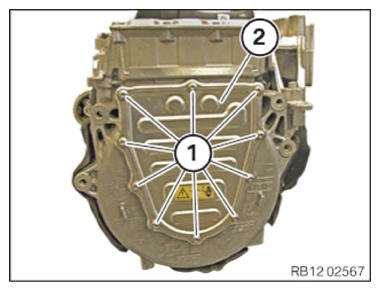

Replace lid (2).
Parts: lid
Install the lid (2).

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Lid on electrical machine
M6
	15 Nm
