If installed: Partially install engine ventilation line

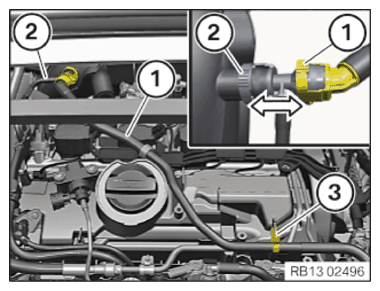

Guide in the engine ventilation line (1) and secure the clamps (3) to the cylinder head hood.
Connect engine ventilation line (1) to the engine ventilation line (2) and lock.
Make sure that the engine ventilation line (1) engages audibly.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
